Forged FF RF RTJ Incoloy Alloy Steel Flanges Weld Neck For Industry Size 2" - 24"

    Buy cheap Forged FF RF RTJ Incoloy Alloy Steel Flanges Weld Neck For Industry Size 2" - 24" from wholesalers

    Buy cheap Forged FF RF RTJ Incoloy Alloy Steel Flanges Weld Neck For Industry Size 2" - 24" from wholesalers
    • Buy cheap Forged FF RF RTJ Incoloy Alloy Steel Flanges Weld Neck For Industry Size 2" - 24" from wholesalers

    Forged FF RF RTJ Incoloy Alloy Steel Flanges Weld Neck For Industry Size 2" - 24"

    Ask Lasest Price
    Brand Name : BoYue
    Model Number : BYSO00047
    Certification : SGS/BV/ABS/LR/TUV/
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 40000pcs per month
    Delivery Time : 10-100 days depending on quantity
    • Product Details
    • Company Profile

    Forged FF RF RTJ Incoloy Alloy Steel Flanges Weld Neck For Industry Size 2" - 24"

    Forged FF/RF/RTJ Incoloy Alloy Steel Flanges WN Flange For Industry Size 2'-24'​



    Product Range:


    WNRF Flanges Size : 1/8" NB TO 48"NB.

    WNRF Flanges Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.


    Stainless Steel WNRF Flanges: ASTM A 182, A 240


    Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750


    Carbon Steel WNRF Flanges: ASTM A 105, ASTM A 181


    Alloy Steel WNRF Flanges : ASTM A 182, GR F1, F11, F22, F5, F9, F91


    Nickel Alloys WNRF Flanges : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276


    Copper Alloys WNRF Flanges: Copper, Brass & Gunmetal


    WNRF Flanges Standard


    ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
    DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
    B.S : BS4504 , BS4504, BS1560, BS10


    TypeFlange/Forgings/Discs/Rings/Shaft/Sleeves
    StandardANSI B16.5, ANSI B16.47, MSS SP-44 or as per the customers' request or drawing
    Size1/2''~72''
    Class Rating150#~2500#
    Facing

    RF(raised face);FF(flat face);RTJ(ring type joint);RJ(ring joint face)

    TG(tongue and groove face);MFM(male and female face)

    Manufacturing processPush, Press, Forge, Cast, etc.

    Material


    Carbon steel

    Stainless steel

    Alloy steel

    Duplex stainless steel

    Nickel alloy steel

    Carbon steel, stainless steel, alloy steel

    ASTM A694 F42,F46,F48,F50,F52,F56,F60,F65,F70;

    ASTM A105;

    ASTM A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2;

    ASTM A266 GR.1,GR.2,GR.3,GR.4

    ASTM A182

    F 304, 304L, 304H, 309S, 309H, 310S, 310H,316,

    316Ti,316L,317, 317L, 321, 347,347H,348

    ASTM A182 F5, F5a , F9, F11, F12, F22, F91;

    Nickel Alloy Steel:

    Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN;

    Alloy 201/Nickel 201/NO2201/2.4068/ASTM B366 WPNL;

    Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC;

    Alloy K-500/Monel K-500/NO5500/2.475;

    Alloy 600/Inconel 600/NO6600/NS333/2.4816;

    Alloy 601/Inconel 601/NO6001/2.4851;

    Alloy 625/Inconel 625/NO6625/NS336/2.4856;

    Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668;

    Alloy 800/Incoloy 800/NO8800/1.4876;

    Alloy 800H/Incoloy 800H/NO8810/1.4958;

    Alloy 800HT/Incoloy 800HT/NO8811/1.4959;

    Alloy 825/Incoloy 825/NO8825/2.4858/NS142;

    Alloy 925/Incoloy 925/NO9925;

    Hastelloy C/Alloy C/NO6003/2.4869/NS333;

    Alloy C-276/Hastelloy C-276/N10276/2.4819;

    Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610;

    Alloy C-22/Hastelloy C-22/NO6022/2.4602;

    Alloy C-2000/Hastelloy C-2000/NO6200/2.4675;

    Alloy B/Hastelloy B/NS321/N10001;

    Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617;

    Alloy B-3/Hastelloy B-3/N10675/2.4600;

    Alloy X/Hastelloy X/NO6002/2.4665;

    Alloy G-30/Hastelloy G-30/NO6030/2.4603;

    Alloy X-750/Inconel X-750/NO7750/GH145/2.4669;

    Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660;

    Alloy 31/NO8031/1.4562;

    Alloy 901/NO9901/1.4898;

    Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926;

    Inconel 783/UNS R30783;

    NAS 254NM/NO8367;

    Monel 30C

    Nimonic 80A/Nickel Alloy 80a/UNS N07080/NA20/2.4631/2.4952

    Nimonic 263/NO7263

    Nimonic 90/UNS NO7090;

    Incoloy 907/GH907;

    Nitronic 60/Alloy 218/UNS S21800;

    ASTM A182 F51/UNS S31803,

    F53/UNS S32750,F55/UNS S32760

    F904L/NO8904/1.4539;

    254SMO/F44/S31254/1.4547

    724L;725LN/310MoLN

    PackingWooden cases, pallets, nylon bags or according to the customers' requirements
    MOQ1pcs
    Delivery time10-100 days depending on quantity
    Payment termsL/C,T/T
    ShipmentFOB Tianjin/Shanghai, CFR, CIF etc
    ApplicationPetroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
    RemarksOther materials and drawings are available.

    Welcome to contact us.

    BOYUE GROUP Co.,Ltd (12 years manufacturing experience)


    Value Added Services

    • Hot Dip Galvanizing ,
    • Epoxy Coating.

    Test Certificate


    Manufacturer Test Certificate as per EN 10204 / 3.1B

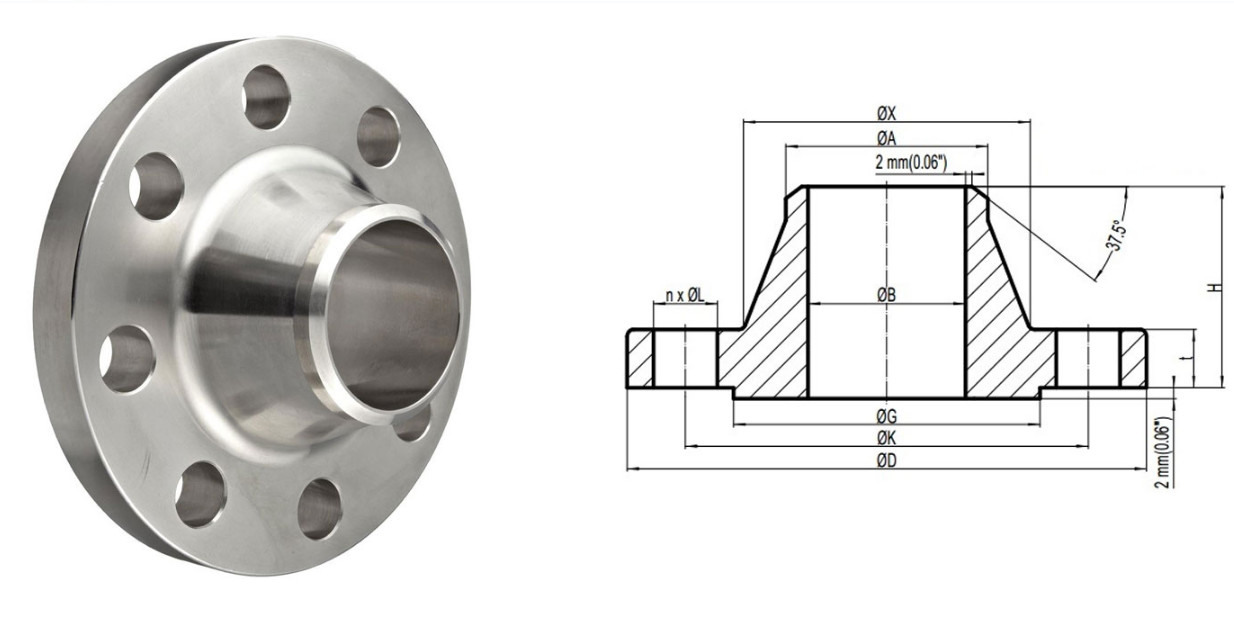

    Weld Neck Flanges


    Weld Neck Flanges are a very common type of pipe flanges used in various industrial applications. They have a long tapered hub and are often used for high pressure applications.

    We are a fast growing organization, engaged in manufacturing, supply and export of welding neck flanges, industrial weld neck flanges and forged flanges. Our weld neck flanges are drilled with the wall thickness of flange having the same dimensions of pipe. Flanges for heavier pipes have smaller bore, while flanges of lighter pipes have larger bore. These weld neck flanges, industrial weld neck flanges, forged flanges are normally used for high-pressure, cold or hot temperature.


    Forged FF RF RTJ Incoloy Alloy Steel Flanges Weld Neck For Industry Size 2" - 24"


    Product Attribute


    Place of OriginChinaBrand NameBOYUE
    StandardANSI, ISO, ASME, DIN, ASTMTypeWelding Neck Flanges
    ModelNumberSteel FlangeThickness#150,#300,#600,.#900,#1500,#2500
    PackingPly-Wood CasesPayment30%TT+70% Balance

    Supply Ability:40000Pieces / per Month

    Packaging & Delivery

    Packaging Details:Generally plywooden case or following customer's requirement.

    Port:Shanghai/Tianjin


    Commerce Clause


    Minimum Order Quantity:1pcs
    Price:Depending on quantity
    Payment Terms:T/T or Western Union or LC
    Supply Ability:40000pcs per month
    Delivery Time:10-100 days depending on quantity
    Packaging Details:PLY-WOODEN CASE OR PALLET

    Why Choose Us


    1. One-Stop Service,One Single Source.

    2. No MOQ.

    3. Best quality,competitive price

    4. Fast Reply.

    5. On-Time Delivery

    6. Professional sales and technical team .


    FAQ


    Q1: Are you a factory or a trade company?
    A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)

    Q2: Do you make customized products or finished parts?
    A2: All parts are custom made only, and in stock, we can produce based on your drawings.

    Q3: Will my drawing be e after you get it?
    A3: Yes, we will not release your design to third party unless with your permission.

    Q4: What is the MOQ?
    A4: Small order is acceptable, but the more, the cheaper.

    Q5: How about the samples?
    A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
