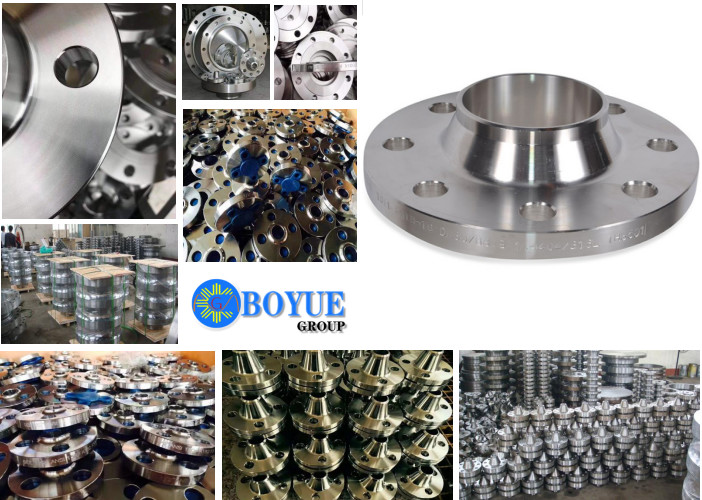

ASME B16.47 Hastelloy B3 Nickel Alloy Weld Neck Pipe Flanges F FF RTJ Series A 150# - 900#

1.ANSI B16.47 Series A Class 150 Flanges

Series A 150 Weld Neck Flange Series A 150 Blind Flange

		Thickness							Drilling				Weight
Nom Size	OD	Weld Neck	Blind	OD of RF	Dia at Base		LTH	Dia Bevel	Bolt Circle	Bolt Length	HoleDia	# of Holes	Weld Neck	Blind
	O	C	C	R	X		Y	A		(1)	(2)
26	34.25	2.63	2.63	29.5	26.62		4.69	26	31.75	8.75	1.38	24	300	702
28	36.5	2.75	2.75	31.5	28.62		4.88	28	34	9	1.38	28	345	833
30	38.75	2.88	2.88	33.75	30.75		5.32	30	36	9.25	1.38	28	400	982
32	41.75	3.13	3.13	36	32.75		5.63	32	38.5	10.5	1.62	28	505	1237
34	43.75	3.19	3.19	38	34.75		5.82	34	40.5	10.5	1.62	32	540	1384
36	46	3.5	3.5	40.25	36.75		6.13	36	42.75	11	1.62	32	640	1676
38	48.75	3.38	3.38	42.25	39		6.13	38	45.25	11	1.62	32	720	1819
40	50.75	3.5	3.5	44.25	41		6.38	40	47.25	11	1.62	36	775	2040
42	53	3.75	3.75	47	43		6.69	42	49.5	11.5	1.62	36	890	2381
44	55.25	3.94	3.94	49	45		6.94	44	51.75	12	1.62	40	990	2717
46	57.25	4	4	51	47.12		7.25	46	53.75	12	1.62	40	1060	2961
48	59.5	4.19	4.19	53.5	49.12		7.5	48	56	12.5	1.62	44	1185	3348
50	61.75	4.32	4.32	55.5	51.25		7.94	50	58.25	13.25	1.88	44	1270	3716
52	64	4.5	4.5	57.5	53.25		8.19	52	60.5	13.75	1.88	44	1410	4156
54	66.25	4.69	4.69	59.5	55.25		8.44	54	62.75	14	1.88	44	1585	4639
56	68.75	4.82	4.82	62	57.38		8.94	56	65	14.25	1.88	48	1760	5132
58	71	5	5	64	59.38		9.19	58	67.25	14.75	1.88	48	1915	5675
60	73	5.13	5.13	66	61.38		9.38	60	69.25	15	1.88	52	2045	6154

Dimensions are in inches. Weights are in pounds.

(1)- Bolt lenghts are calculated based on bolting one WN to one Blind.
(2)- Bolt diameter should be 1/8" less than the bolt hole diameter
Note:

Larger sizes as well as intermediate sizes can be furnished.
ANSI B16.47 Series A Class 150 Flange PDF (for printing).

2.Alloy B-3 / UNS N10675

Description

B-3® Alloy is an additional member of the nickel-molybdenum family of alloys with excellent resistance to hydrochloric acid at all concentrations and temperatures.

It also withstands sulfuric, acetic, formic and phosphoric acids, and other non-oxidizing media.B-3® alloy has a special chemistry designed to achieve a level of thermal stability greatly superior to that of it predecessors, e.g. B-2 alloy. B-3® alloy has excellent resistance to pitting corrosion, to stress-corrosion cracking and to knife-line and heat-affected zone attack. The improved thermal stability of B-3® alloy minimizes the problems associated with fabrication of B-2 alloy components.

Specifications:

N10675, ASTM B366, ASME SB366, WPHB3-W, ASME B16.9, ANNEALED, MERCURY FREE, EN 10204-3.1 (W/O X-RAY), ASTM B335, ASME SB335, ASTM B564, ASME SB564, DIMENSIONS PER ASME B16.5, ASTM B462, ASME SB462, ASME B16.5, COLD DRAWN, HOT FINISHED, ASTM B626, ASME SB626, B/SB626 CLASS III, ASTM B333, ASME SB333, COLD ROLLED, HOT ROLLED

Product Attribute

Place of Origin	China	Brand Name	BOYUE
Standard	ANSI, ISO, ASME, DIN, ASTM	Type	Weld Neck Pipe Flanges
ModelNumber	Hastelloy B3	Thickness	#150,#300,#600,.#900,#1500,#2500
Packing	Ply-Wood Cases	Payment	30%TT+70% Balance

Supply Ability:40000Pieces / per Month

Packaging & Delivery

Packaging Details:Generally plywooden case or following customer's requirement.

Port:Shanghai/Tianjin

Commerce Clause

Minimum Order Quantity:	1pcs
Price:	Depending on quantity
Payment Terms:	T/T or Western Union or LC
Supply Ability:	40000pcs per month
Delivery Time:	10-100 days depending on quantity
Packaging Details:	PLY-WOODEN CASE OR PALLET

Why Choose Us

1.One-Stop Service,One Single Source.

2.No MOQ.

3.Best quality,competitive price

4.Fast Reply.

5.On-Time Delivery

6.Professional sales and technical team .

FAQ

Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)

Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.

Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.

Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.

Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.

BoYue Industrial (Shanghai)Co., Ltd. is a professional, young and dynamic enterprise. Adhering to the concept of “survival by quality, development by innovation, cooperation by service”, we provide customers with reliable quality, reasonable price and stable delivery time.

Our main products include steel plate series, pipe series, pipe fittings series, flange series and other related products.

We have a complete sales team, technical team, after-sales service team and large and reliable supply factory, all kinds of certificates. Make sure you get the most reliable products, the most professional technical support and attentive service.

We welcome friends from all over the world to visit our company.

In order to comply with the global modernization services development trends and eliminating the varieties distress of the global enterprise‘s purchase in the consumables, which especially BoYue in products. We coordinate the pressure pipe manufacturer which with the scale of production, quality control and high cost performance (has passed ISO 9001 quality series attestation, ccs, DNV,PED/97/23/EC,AD2000-WO, special equipment manufacturing license,ASME-SA182,) through a variety of effective assort mechanism to make up the shortage of supply and Post-processing of VAT enterprise, and to supply high quality pipe fittings, because of the superior quality and good service, we have established long term business cooperation with more than 30 countries and areas,which covers Europe, Africa, South America, North America, Middle East, Taiwan and South East Asia and so on.

With many years effort and support from our valuable customers, these products have obtained a big market share in the world. Our business principle is "Superior quality, Competitive price, Timely delivery and Considerate service " Standing to the principle of “Enterprises focus on the core business”, we will actively promotes the globalization of business strategy approach, using advanced supply chain management technology to service for clients with higher quality and more competitiveness ‘ s products. At the same time, we sincerely reply your inquiry, honesty waiting for your visiting and wish to have cooperation with you at the any time. We welcome all the customers to contact us for more information. We assure you, with our technical knowledge and experience, our company will be one of your Stable, Continuate business partner in China!
