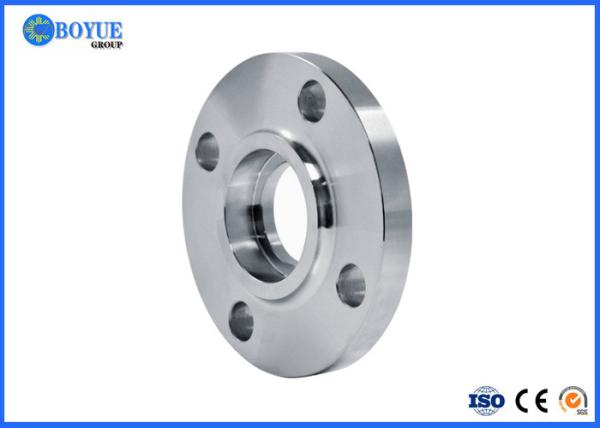

RF FF RTJ Type Socket Weld Flange , Nickel Alloy Flanges ASTM B564 UNS N08031

ASTM B564 Socket Weld Nickel Alloy Pipe Flanges Alloy 31 UNS N08031 1/2 Inch - 24

1. ALLOY 1.4562 / UNS N08031 / ALLOY 31

Corresponding Standards: EN 1.4562, UNS N08031 MATERIAL DESCRIPTION

• Alloy 31 is a nickel, chromium and molybdenum stainless steel with nitrogen and copper additions. It combines moderate tensile strength and high ductility with excellent corrosion resistance in sulfuric acid, reducing and oxidizing media and has strong resistance to corrosion and erosion corrosion in phosphoric environment.
• Typically the alloy has PREN of ≥ 48, which ensure that the resistance to pitting corrosion is high.

CHEMICAL COMPOSITION

WEIGHT%	C	SI	MN	S	P	CR	NI	MO	N	CU
MIN.						26,0	30,0	6,0	0,15	1,0
MAX.	0,015	0,3	2,00	0,010	0,020	28,0	32,0	7,0	0,25	1,4

PREN = (CR% + 3.3MO% + 16N%) ≥ 48
PRODUCT STANDARDS: ASTM B625 – 14
APPROVALS: FOR USAGE IN PRESSURE VESSELS WITH WALL TEMPERATURES BETWEEN -196°C TO 550°C

APPLICATIONS

Typical applications: Pulp and paper industry, flue gas desulphurization – FGD – systems, sea water heat exchangers, petroleum production and refining industry, mining industry – ore processing…

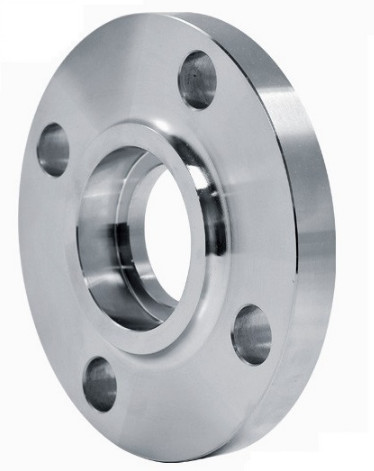

2. SOCKET WELD PIPE FLANGES

Socket-weld pipe flanges are typically used on smaller sizes of high pressure pipes. These pipe flanges are attached by inserting the pipe into the socket end and applying fillet weld around the top. This allows for a smooth bore and better flow of the fluid or gas inside of the pipe. Slip on Pipe flanges with a hub have published specifications that range from 1/2" thru 24". Coastal Flange provides Socket Weld pipe flanges in all material grades, specifications and sizes.

Socket Weld Flange Dimensions

RF FF RTJ Type Socket Weld Flange , Nickel Alloy Flanges ASTM B564 UNS N08031

ASME B16.5 Class 150

SIZE

Bolt Circle (BC)

Raised Face (R)

Raised Face (RF)

ID 2*

Raised Face Thickness (T)

Flat Face Thickness (T2)

Bolt Hole (B)

No. of Bolt Holes

1/2"

0.88"

3.50"

2.38"

1.38"

.063"

1.19"

.38"

0.62"

.62"

.38"

.56"

.62"

3/4"

1.09"

3.88"

2.75"

1.69"

.063"

1.50"

.44"

0.82"

.62"

.44"

.56"

.62"

1.36"

4.25"

3.12"

2.00"

.063"

1.94"

.50"

1.05"

.69"

.50"

.63"

.62"

1-1/4"

1.70"

4.62"

3.50"

2.50"

.063"

2.31"

.56"

1.38"

.81"

.56"

.75"

.62"

1-1/2"

1.97"

5.00"

3.88"

2.88"

.063"

2.56"

.62"

1.61"

.88"

.62"

.82"

.62"

2.44"

6.00"

4.75"

3.62"

.063"

3.06"

.69"

2.07"

1.00"

.69"

.94"

.75"

2-1/2"

2.94"

7.00"

5.50"

4.12"

.063"

3.56"

.75"

2.47"

1.12"

.82"

1.06"

.75"

3.57"

7.50"

6.00"

5.00"

.063"

4.25"

.81"

3.07"

1.19"

.88"

1.13"

.75"

3-1/2"

4.07"

8.50"

7.00"

5.50"

.063"

4.81"

.88"

3.55"

1.25"

.88"

1.19"

.75"

4.57"

9.00"

7.50"

6.19"

.063"

5.31"

.94"

4.03"

1.31"

.88"

1.25"

.75"

5.66"

10.00"

8.50"

7.31"

.063"

6.44"

.94"

5.05"

1.44"

.88"

1.38"

.88"

6.72"

11.00"

9.50"

8.50"

.063"

7.56"

1.06"

6.07"

1.56"

.94"

1.50"

.88"

8.72"

13.50"

11.75"

10.62"

.063"

9.69"

1.25"

7.98"

1.75"

1.06"

1.69"

.88"

10"

10.88"

16.00"

14.25"

12.75"

.063"

12.00"

1.31"

10.02"

1.94"

1.13"

1.88"

1.00"

12"

12.88"

19.00"

17.00"

15.00"

.063"

14.38"

1.56"

12.00"

2.19"

1.19"

2.13"

1.00"

14"

14.14"

21.00"

18.75"

16.25"

.063"

15.75"

1.63"

13.25"

2.25"

1.32"

2.19"

1.12"

16"

16.16"

23.50"

21.25"

18.50"

.063"

18.00"

1.75"

15.25"

2.50"

1.3
