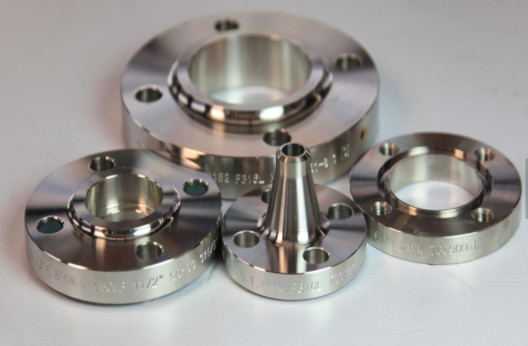

3/4" 300# Alloy 20 Flange ASTM SB 564 UNS N08020 FlangeNr. 2.4660 Socket Weld Pipe Flanges
ASTM B462 INCONEL FLANGES SPECIFICATION
Specifications : ASTM B462 / ASTM SB 564
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605,
AWWA, Custom Drawings
Size : ½” to 36″
Pressure Ratings :150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40,
PN64
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Standards : ASTM, ASME Flanges, ANSI Flanges, DIN Flanges, EN Flanges, BS
Flanges etc.
EQUIVALENT GRADE
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | EN |
| Alloy 20 | 2.4660 | N08020 | Z2NCUD31-20AZ | NiCr20CuMo |
ALLOY 20 FLANGES CHEMICAL COMPOSITION
| Grade | Ni | Fe | C | Mn | Si | Cu | Cr | Mo | S | P | Nb |
| Alloy 20 | 32 - 38 | Bal | 0.02 max | 1 - 2 | 0.7 max | 3 - 4 | 19 - 21 | 2 - 3 | 0.005 max | 0.02 max> | 0.1 - 0.3 |
MECHANICAL PROPERTIES
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi - 35,000, MPa - 241 | 30 % |
Stainless Steel :
Grade: 304, 304L, 304H, 309, 309S, 316, 316L, 316H, 310, 310S, 317,
317L, 321, 347, 904L
Carbon Steel :
Grade: WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 &
WPHY 70
Alloy Steel:
Grade : WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Inconel :
Grade: Inconel 600, Inconel 601, Inconel 625
Incoloy :
Grade: Incoloy 800, Incoloy 800H, Incoloy 800HT
Monel :
Grade: Monel 400, Monel K500, Monel R-405
Hastalloy :
Grade: Hastalloy C22, Hastalloy C276
Nickel :
Grade: Nickel 200, Nickel 201
Copper Nickel Alloy:
Grade : Copper Nickel Cu-Ni 90 / 10 (C70600)
Titanium :
Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Duplex Steel:
Grade: UNS F44, F45, F51, F53, F55, F60, F61
Delivery:
Port:Tianjin/Shanghai/Ningbo
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 15-30 To be negotiated
Place of Origin China Brand Name BOYUE
Standard ANSI, ISO, ASME, DIN, ASTM Type SW/WN/SO/BL/TH Flanges
ModelNumber Steel Flange Thickness #150,#300,#600,.#900,#1500,#2500
Packing Ply-Wood Cases Payment 30%TT+70% Balance
Supply Ability:40000Pieces / per Month
Packaging & Delivery
Packaging Details:Generally plywooden case or following customer's
requirement.
Port:Shanghai/Tianjin
Commerce Clause
Minimum Order Quantity: 1pcs
Price: Depending on quantity
Payment Terms: T/T or Western Union or LC
Supply Ability: 40000pcs per month
Delivery Time: 10-100 days depending on quantity
Packaging Details: PLY-WOODEN CASE OR PALLET
Why Choose Us
1. One-Stop Service,One Single Source.
2. No MOQ.
3. Best quality,competitive price
4. Fast Reply.
5. On-Time Delivery
6. Professional sales and technical team .
FAQ
Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing
of Large-size products.(View Mor)
Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce
based on your drawings.
Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with
your permission.
Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.
Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to
ensure quality standard, but it’s charged according to your
drawing.
