Precision SS Blind Flange ASME B16.5 FF RTJ RF For Intermediate Point Connection

    Buy cheap Precision SS Blind Flange ASME B16.5 FF RTJ RF For Intermediate Point Connection from wholesalers

    Buy cheap Precision SS Blind Flange ASME B16.5 FF RTJ RF For Intermediate Point Connection from wholesalers
    • Buy cheap Precision SS Blind Flange ASME B16.5 FF RTJ RF For Intermediate Point Connection from wholesalers

    Precision SS Blind Flange ASME B16.5 FF RTJ RF For Intermediate Point Connection

    Ask Lasest Price
    Brand Name : BY
    Model Number : BYBL00049
    Certification : SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000 PC Per Month
    Delivery Time : 10 Work days
    • Product Details
    • Company Profile

    Precision SS Blind Flange ASME B16.5 FF RTJ RF For Intermediate Point Connection

    Forged Stainless Steel A-182 - F-304, 304L Blind Pipe Flanges ASME B16.5 FF RTJ RF



    Chemical Properties:

    CMnSiPSCrMoNiN
    316
    (S31600)    		0.08
    max    		2.0
    max    		0.75
    max    		0.045
    max    		0.03
    max    		min: 16.0
    max: 18.0    		min: 2.0
    max: 3.0    		min: 10.0
    max: 14.0    		0.10
    max
    316L
    (S31603)    		0.03
    max    		2.0
    max    		0.75
    max    		0.045
    max    		0.03
    max    		min: 16.0
    max: 18.0    		min: 2.0
    max: 3.0    		min: 10.0
    max: 14.0    		0.10
    max


    Mechanical Properties:

    GradeTensile Strength
    ksi (min)    		Yield Strength
    0.2% ksi (min)    		Elongation %Hardness (Brinell) MAXHardness
    (Rockwell B) MAX
    316
    (S31600)    		75304021795
    316L
    (S31603)    		70254021795


    Physical Properties:

    Density
    lbm/in3    		Thermal Conductivity
    (BTU/h ft. °F)    		Electrical
    Resistivity
    (in x 10-6)    		Modulus of
    Elasticity
    (psi x 106    		Coefficient of
    Thermal Expansion
    (in/in)/°F x 10-6    		Specific Heat
    (BTU/lb/°F)    		Melting
    Range (°F)
    0.29 at 68°F100.8 at 68 212°F29.1 at 68°F298.9 at 32 – 212°F0.108 at 68°F2500 to 2550
    9.7 at 32 – 1000°F0.116 at 200°F
    11.1 at 32 – 1500°F

    The Purpose Of Forged Flanges


    Forged flanges combine two separate machinery parts together. They can be an extension to a structure in order to make the object stronger. Industrial flanges have numerous uses including connecting sheets, pumps, pipes and structures that specifically require an intermediate point of connection.


    Types Of Forged Flanges


    Stainless steel flanges come in many different types. Each type meets its own requirement. Long weld neck flanges are attached to a pipes neck. The way this flange is welded ensures the thickness is the same as the dimensions of the pipe that it was connected to. These flanges are most commonly used for applications that use high pressure.


    Advantages


    A connection that has been FCI forged will eliminate certain aspects of shop fabrication. A reinforced pad application eliminates the need for cutting, drilling, layout, forming and the tapping of the weep hole.


    Better Quality Control


    The inspections relating to shop fabrication, components and material trace ability is greatly reduced. This lets the Quality Control Inspectors use their time in areas that are of a more critical concern. Barrel distortion is also reduced significantly.


    Reduced Production Costs


    The FCI has reduced the production of fabrication costs. This applies to material requisitioning, purchasing, expediting, quality control, inspections, documentation, testing, the fabrication schedule and material requisitioning. All of this lowers the cost of production and saves money.

    Any questions can be easily addressed by having a consultation. You questions will be correctly and promptly answered.

    Materials:


    CARBON STEEL - ASTM/ASME SA-105, A-350 LF-2, LF-3, A694, SA-516-70, A36

    CHROME ALLOYS - A-182-F-1, F-5, F-6, F-7, F-9, F-11, F-12, F-22, F-51

    STAINLESS STEEL - A-182 - F-304, 304L, 316, 316L, 309, 310, 317L, 321, 347,
    Alloy 20

    ALUMINUM - 1100, 2014, 3003, 5083, 5086, 6061, 7075

    HASTALLOY - B-2, C-276, G, X

    INCONEL - 600, 601, 625, 718

    INCOLLOY - 800, 825

    MONEL - 400

    COPPER - C11000

    NAVAL BRASS - (Bronze)

    TITANIUM

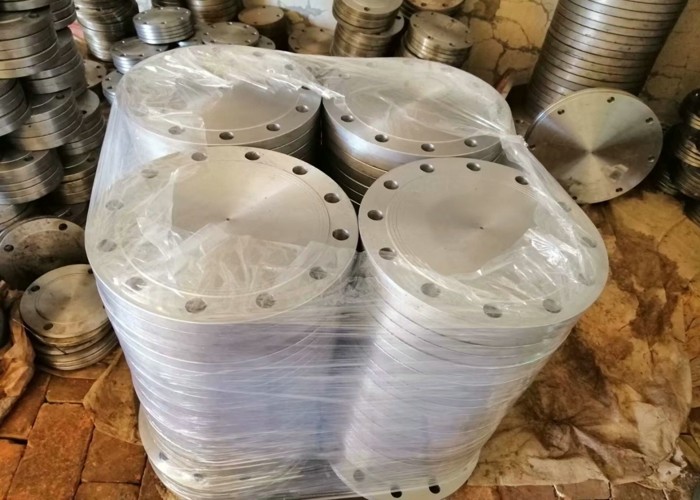

    Precision SS Blind Flange ASME B16.5 FF RTJ RF For Intermediate Point Connection

    Why Choose Us


    1.One-Stop Service,One Single Source.
    2.No MOQ.
    3.Best quality,competitive price
    4.Fast Reply.
    5.On-Time Delivery
    6.Professional sales and technical team .


    FAQ


    Q1: Are you a factory or a trade company?
    A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)
    Q2: Do you make customized products or finished parts?
    A2: All parts are custom made only, and in stock, we can produce based on your drawings.
    Q3: Will my drawing be e after you get it?
    A3: Yes, we will not release your design to third party unless with your permission.
    Q4: What is the MOQ?
    A4: Small order is acceptable, but the more, the cheaper.
    Q5: How about the samples?
    A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
