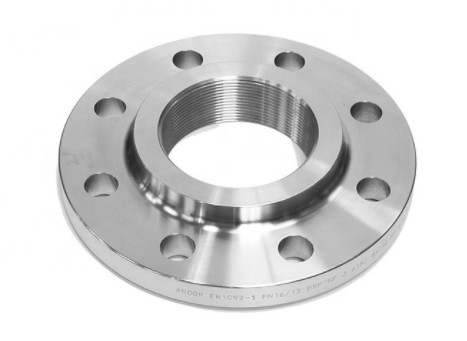

Hastelloy C 22 Nickel Alloy Flanges RTJ FF RF Long Threaded Pipe
Flange For Industry
1. HASTELLOY C-22 Flanges
Hastelloy C-22 Flanges, Hastelloy C-22 Slip On Flanges, Hastelloy
UNS N06022 Pipe Flanges, Hastelloy C-22 Spectacle Blind Flanges,
ANSI B16.5 Alloy C-22 Orifice Flange, Alloy C-22 RTJ Flange
Supplier ,Hastelloy DIN 2.4602 Socket Weld Flanges, Hastelloy C-22
Nippolet Flanges, ASTM B564 Hastelloy C-22 Threaded Flanges,
Hastelloy C-22 Nippo Flanges, Hastelloy C-22 WN RF Flanges
Exporter, Alloy C-22 Blind Flanges, C-22 Alloy Weld Neck Flange
Dealer in China.
2. Hastelloy C-22 Flanges Specifications
| Specifications | ASTM B564 / ASME SB564 |
| Size | 1/2″NB TO 60″NB |
| Standards | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10,
EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40,
PN64 etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges,
etc. |
3. Other Hastelloy C-22 Flanges we have
| Standard | Type | Class | Size |
| ASME B16.5 | WN/LWN/SO/Blind/Lap Joint | 150#-2500# | 1/2"-24" (Except Blind Flange 2500lb 1/2"-12") |
| SW flange | 150#-1500# | 1/2"-3" (Except 1500# 1/2"-2 1/2") |
| Threaded | 150#-900# | 1/2"-24" |
| 1500# 2500# | 1/2"-2 1/2" |
| ASME B16.47 Series A | WN/blind flange | 150# -900# | 22"-48" (Except 900# Size:26"-48") |
| ASME B16.47 Series B | WN/blind flange | 75#-300# | 26"-48" |
| 400# 600# 900# | 26"-36" |
| DIN2527 | Blind flange | PN6-PN100 | DN10-DN1000 |
| DIN2543 | SO flange | PN16 | DN10-DN1000 |
| DIN2544 | SO flange | PN25 | DN10-DN1000 |
| DIN2545 | SO flange | PN40 | DN10-DN500 |
| DIN2565 | Threaded flange with Neck | PN6 | DN6-DN200 |
| DIN2566 | Threaded flange with Neck | PN16 | DN6-DN150 |
| DIN2567 | Threaded flange with Neck | PN25 PN40 | DN6-DN150 |
| DIN2568 | Threaded flange with Neck | PN64 | DN10-DN150 |
| DIN2569 | Threaded flange with Neck | PN100 | DN10-DN150 |
| EN1092-1:2002 | Plate flange for welding/ loose plate flange with weld-on plate collar or for lapped pipe end/Blind Flange/WN flange | PN2.5-PN100 | DN10-DN4000 |
| JIS B2220 | Welding flange, lap joint flange, threaded flange | PN6-PN100 | DN10-DN1500 |
| BS4504 BS10 TableD/E | Plate Flange for welding/ WN flange/blank Flange | PN6-PN100 | DN10-DN1500 |
| Other Products | Anchor/swivel/girth/l ap joint/reducing/orifice |
Spectacle blind/paddle blind/ spacer ring/orifice plate/bleed ring |
Special Products: rings/ forgings/disc/shaft sleeves |
| Sealing Surface | RF FF RTJ TF GF LF LM |
| Flange Face Finish | Stock finish/spiral serrated/ concentric serrated/smooth finish (Ra 3.2 and 6.3 micrometers) |
| 125-250 AARH(it is called smooth finish) |
| 250-500 AARH(it is called stock finish) |
| Coating | Vanish, yellow paint, anti-rust oil, galvanizing etc |
| Material Grade | Nickel Alloy Steel | ASTM/ASME B/SB564 UNS N02200(NICKEL 200), UNS N04400(MONEL 400), |
| UNS N08825( INCOLOY 825),UNS N06600(INCONEL 600), |
UNS N06601(INCONEL 601), UNS N06625(INCONEL 625), UNS N06022(HASTELLOY C276), |
ASTM/ASME B/SB160 UNS N02201(NICKEL 201), ASTM B/SB472 UNS N08020(Alloy 20) |
| Copper Alloy | ASTM/ASME B/SB151 UNS C70600(CuNi 90/10), C71500(CuNi 70/30) |
| Stainless Steel | ASTM/ASME A/SA182 F304,304L,304H,309H,310H, 316,316H,316L,316LN, |
| 317,317L,321,321H,347,347H |
| Duplex and Super Duplex Steel | ASTM/ASME A/SA182 F44,F45,F51,F53,F55,F60,F61 |
| Carbon steel | ASTM /ASME A/SA105(N) |
| Low Temp Carbon Steel | ASTM/ASME A/SA350 LF2 |
| High Yield Carbon Steel | ASTM/ASME A/SA694 F52,F56 F60, F65, F70 |
| Alloy Steel | ASTM/ASME A/SA182 GR F5, F9, F11,F12,F22,F91 |
| Titanium | ASTM/ASME B/SB381 Grade 2, Grade 5, Grade 7 |
4. Type of Hastelloy C-22 Flanges
| Hastelloy C-22 Long weld Neck Flanges | Hastelloy C-22 Long weld Neck Flanges
C-22 Alloy Long weld Neck Flanges
C-22 Hastelloy Long weld Neck Flanges
Hastelloy UNS N06022 Long weld Neck Flanges
Hastelloy WERKSTOFF NR. 2.4602 Long weld Neck Flanges
ASTM B564 Hastelloy C-22 Long weld Neck Flanges |
5. About Hastelloy C-22 Flanges
Hastelloy Alloy C-22 Pipe Flanges Chemical Composition
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
Hastelloy C-22 Plate Flanges Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength(0.2%Offset) | Elongation |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
Equivalent Grades for C-22 Hastelloy Industrial Pipe Flanges
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | – | NiCr21Mo14W | – |
6. Hastelloy C-22 Flanges Test Certificates
We provide Manufacturer TC (Test Certificate) in accordance to EN
10204/3.1B, Raw Materials Certificate, 100% Radiography Test
Report, Third Party Inspection Report. We also provide Standard
certificates like EN 10204 3.1 and additional requirement like.
NACE MR 01075. FERRIT CONTENT as per norms if requested by clients.
• EN 10204/3.1B,
• Raw Materials Certificate
• 100% Radiography Test Report
• Third Party Inspection Report, etc
ASTM, ASME Hastelloy C-22 Flanges Value Added Services
Material Testing:
We at Ganpat Industrial Corporation ensure that all our materials
go through strict quality tests before dispatching them to our
clients.
• Mechanical Testing Such as Tensile of Area
• Hardness Test
• Chemical Analysis – Spectro Analysis
• Positive Material Identification – PMI Testing
• Flattening Test
• Micro and MacroTest
• Pitting Resistance Test
• Flaring Test
• Intergranular Corrosion (IGC) Test
Documentation
• Commercial Invoice which includes HS Code
• Packing List including net weight and gross weight, number of
boxes, Marks and Numbers
• Certificate of Origin legalized/attested by Chamber of Commerce
or Embassy
• Fumigation Certificates
• Raw Material Test Reports
• Material Traceability Records
• Quality Assurance Plan (QAP)
• Heat Treatment Charts
• Test Certificates certifying NACE MR0103, NACE MR0175
• Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204
3.2
• Guarantee Letter
• NABL approved Laboratory Test Reports
• Welding Procedure Specification/Procedure Qualification Record,
WPS/PQR
• Form A for the purposes of the Generalized System of Preferences
(GSP)
7. Hastelloy C-22 Flanges Packaging
Hastelloy C-22 Flanges are widely used in various industries
including petrochemical, oil and gas, power generation, bulk liquid
transportation, chemicals, pharmaceuticals, pulp and paper
manufacturing, textiles and others. All our Alloy C-22 Flange are
manufactured in accordance with international standards. Hastelloy
C-22 Pipe Flange are packaged to ensure that there is no damage
during transit. In case of exports, standard export packaging is
done in wooden cases. All Hastelloy C-22 Plate Flanges are marked
with Grade, Lot No, Size, Degree and our trade mark. On special
requests we can also, make custom marking on C-22 Hastelloy
Flanges.
Product Description
| Material | F304, 304L, F316, F316L, F321, 316Ti, 317L, 347, F5, F9, F11, F22,
LF2, A105, 1.4541, 1.4571, 1.4404, 1.4307 and P250GH. |
| Size | from 1/2"-84" |
| Standard | ANSI, DIN, JIS, BS, SH, BS4504, EN1092-1, BS3293 and other
standards. |
| type | WN,SO,BL,SW,LJ,TH, |
| packing | plywood case, pallet or according to customers’ requirements |
| certificate | TUV&ABS, ISO9001:2000, Pressure Equipment Directive PED
97/23/EC, and BV and AD2000-Merkblatt WO |
| Sealing surface | FF ,RF, LJ, FM ,R.T.J and so on |
Why Choose Us
1. One-Stop Service,One Single Source.
2. No MOQ.
3. Best quality,competitive price
4. Fast Reply.
5. On-Time Delivery
6. Professional sales and technical team .
