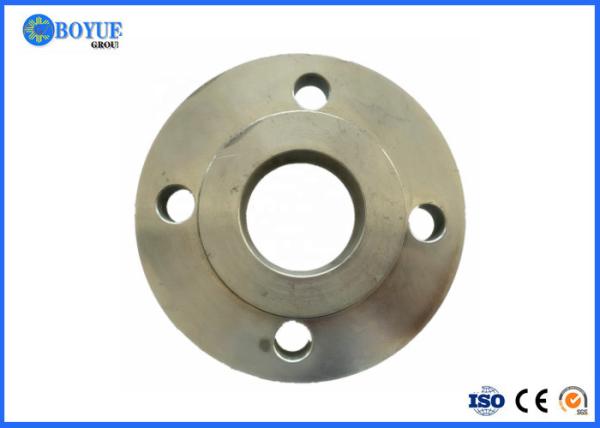

    ASTM A182 Stainless Steel Slip On Flange ANSI B16.47 Series A B 150 - 2500

    Ask Lasest Price
    Brand Name : BY
    Model Number : BYSW00024
    Certification : SGS/BV/ABS/LR/TUV/DNV
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : 10000 PC Per Month
    • Product Details
    • Company Profile

    ASTM A182 Stainless Steel Slip On Flange ANSI B16.47 Series A B 150 - 2500

    ASTM A182 Forged Stainless Steel Flanges ANSI B16.47 Series A B 150# - 2500# Size 1/2'-24'


    BOYUE GROUP Stainless Steel Flanges including: Slip-Ons, Socket Weld, Blinds, Lap Joints, Threaded and Weld Necks.


    Slip-on Flanges


    Slip-on Flanges have a lower initial cost than welding neck flanges because they require less accuracy in cutting pipe to length, and they provide a greater ease of alignment in assembly. However, their calculated strength under internal pressure is approximately 2/3's the strength of welding neck flanges, and their life under fatigue is 1/3 shorter. Slip-on Flanges are limited to 1/2" to 2½" sizes in 1500lbs standard.


    Threaded Flanges


    Threaded Flanges are used for special applications. They can be assembled without welding and can be used in extremely high pressure services--at or near atmospheric pressure--where alloy steel is essential for strength. Threaded flanges are not suited for conditions involving temperature or bending stresses, or under cyclic conditions where leakage through the threads may occur.


    Weld Neck Flanges


    Weld Neck Flanges have a long tapered hub and gradual transition of thickness in the region of the butt weld joining them to the pipe. The tapered hub provides important reinforcement to the flange and resistance to dishing. This type of flange is preferred for severe service conditions resulting from high pressure, sub-zero or high temperatures.


    Blind Flanges


    Blind Flanges are used to blank off the ends of piping, valves and pressure vessel openings. Blind Flanges can handle high stress from internal pressure and bolt loading since the maximum stresses in the blind flange are bending stresses at the center.


    Socket Weld Flanges


    Socket Weld Flanges were developed for use on small size high pressure piping. With an internal weld, socket weld flanges are stronger and have greater fatigue strength than double welding a slip-on flange. Smooth bore conditions can be easily attained by grinding the internal weld. This flange is commonly used in chemical process piping.


    Lap Joint Flanges


    Lap Joint Flanges are used with lap joint stubs. Lap joint flanges are commonly used in carbon or low alloy steel piping systems that need to be frequently dismantled for inspection and cleaning. They should not be used at any points where severe bending stresses occur.


    Stainless Steel WNRF Flanges: ASTM A 182, A 240

    Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750


    Carbon Steel WNRF Flanges: ASTM A 105, ASTM A 181


    Alloy Steel WNRF Flanges : ASTM A 182, GR F1, F11, F22, F5, F9, F91


    Nickel Alloys WNRF Flanges : Monel 400 & K500, Inconel 600 , 601, 625, 690 , 718, X750, Incolloy 800, 800H, 800HT , 825, 926 , Hastelloy B3, B2, B, C-22,C-276, Alloy 8020, alloy 8028, alloy 8367


    Copper Alloys WNRF Flanges: Copper, Brass & Gunmetal


    Flanges Standard


    ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
    DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
    B.S : BS4504 , BS4504, BS1560, BS10


    ASTM A182 Stainless Steel Slip On Flange ANSI B16.47 Series A B 150 - 2500


    Place of OriginChinaBrand NameBOYUE
    StandardANSI, ISO, ASME, DIN, ASTMTypeSW/WN/SO/BL/TH Flanges
    ModelNumberSteel FlangeThickness#150,#300,#600,.#900,#1500,#2500
    PackingPly-Wood CasesPayment30%TT+70% Balance

    Supply Ability:40000Pieces / per Month

    Packaging & Delivery

    Packaging Details:Generally plywooden case or following customer's requirement.

    Port:Shanghai/Tianjin


    Commerce Clause


    Minimum Order Quantity:1pcs
    Price:Depending on quantity
    Payment Terms:T/T or Western Union or LC
    Supply Ability:40000pcs per month
    Delivery Time:10-100 days depending on quantity
    Packaging Details:PLY-WOODEN CASE OR PALLET

    Why Choose Us


    1. One-Stop Service,One Single Source.

    2. No MOQ.

    3. Best quality,competitive price

    4. Fast Reply.

    5. On-Time Delivery

    6. Professional sales and technical team .


    FAQ


    Q1: Are you a factory or a trade company?
    A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)

    Q2: Do you make customized products or finished parts?
    A2: All parts are custom made only, and in stock, we can produce based on your drawings.

    Q3: Will my drawing be e after you get it?
    A3: Yes, we will not release your design to third party unless with your permission.

    Q4: What is the MOQ?
    A4: Small order is acceptable, but the more, the cheaper.

    Q5: How about the samples?
    A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
