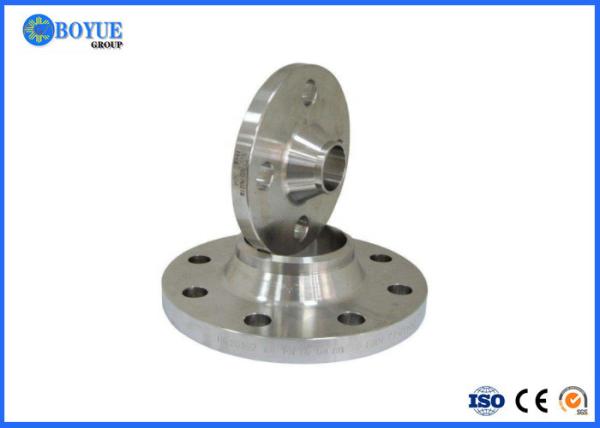

Monel 400 WN Nickel Alloy pipe Flanges 600# 26" B16.47 SERIES B
ASTM B564 UNS N04400
Flange Specification:
| Thickness | Drilling | Weight |

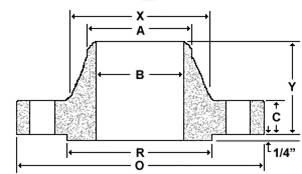

| Nom Size | OD | Weld Neck | Blind | OD of RF | Dia at Base | Bore | LTH | Dia Bevel | Bolt Circle | Bolt Length | Hole Dia | # of Holes | Weld Neck | Blind |
| O | C | C | R | X | B | Y | A | | -1 | -2 | | | |
| 26 | 33.5 | 3.5 | 3.5 | 28 | 27.12 | To Be Specified By Purc- harser | 5.88 | 26 | 30.75 | 11.25 | 1.5 | 28 | 360 | 874 |
| 28 | 36 | 3.75 | 3.75 | 30 | 29.12 | 6.25 | 28 | 33 | 12 | 1.62 | 24 | 450 | 1081 |
| 30 | 38.25 | 4 | 4 | 32.25 | 31.25 | 6.69 | 30 | 35.25 | 12.5 | 1.62 | 28 | 530 | 1302 |
| 32 | 40.75 | 4.25 | 4.25 | 34.38 | 33.25 | 7.06 | 32 | 37.5 | 13.25 | 1.75 | 28 | 635 | 1570 |
| 34 | 42.75 | 4.38 | 4.38 | 36.5 | 35.38 | 7.38 | 34 | 39.5 | 13.5 | 1.75 | 32 | 690 | 1781 |
| 36 | 45.5 | 4.69 | 4.69 | 38.62 | 37.5 | 7.88 | 36 | 42 | 14.5 | 1.88 | 28 | 855 | 2160 |
| 38 | 47.5 | 4.88 | 4.88 | 40.75 | 39.5 | 8.12 | 38 | 44 | 14.75 | 1.88 | 32 | 935 | 2450 |
| 40 | 50 | 5.12 | 5.12 | 43 | 41.5 | 8.5 | 40 | 46.25 | 15.5 | 2 | 32 | 1090 | 2848 |
| 42 | 52 | 5.25 | 5.25 | 45 | 43.62 | 8.81 | 42 | 48.25 | 15.75 | 2 | 32 | 1190 | 3159 |
| 44 | 54.5 | 5.5 | 5.5 | 47.25 | 45.62 | 9.18 | 44 | 50.5 | 16.5 | 2.12 | 32 | 1375 | 3635 |
| 46 | 56.75 | 5.75 | 5.75 | 49.5 | 47.75 | 9.62 | 46 | 52.75 | 17 | 2.12 | 36 | 1525 | 4120 |
| 48 | 59.5 | 6 | 6 | 51.5 | 49.88 | 10.12 | 48 | 55.25 | 18 | 2.38 | 28 | 1790 | 4726 |
| 50 | 61.75 | 6.19 | 6.25 | 53.62 | 52 | 10.56 | 50 | 57.5 | 18.5 | 2.38 | 32 | 1950 | 5303 |
| 52 | 63.75 | 6.38 | 6.44 | 55.62 | 54 | 10.88 | 52 | 59.5 | 18.75 | 2.38 | 32 | 2125 | 5823 |
Dimensions are in inches. Weights are in pounds.
MONEL 400 (UNS N04400) Ni 66.5 Cu 31.5 Description
Ni 66.5 Cu 31 Fe 2.5 Mn 2.0 C 0.3 Si 0.5 S 0.024
High Performance Alloys stocks and produces Monel 400 in this grade
in the following forms: Bar, square
bar, wire spool, wire cuts, loose coil, sheet/plate, tube, pipe,
flange.
Monel 400 is a Nickel-Copper alloy, resistant to sea water and
steam at high temperatures as well as to
salt and caustic solutions.
Monel 400 is a nickel-copper alloy with excellent corrosion
resistance in a wide variety of media.
Monel 400 is characterized by good general corrosion resistance,
good weldability and moderate to high
strength.
The alloy has been used in a variety of applications.
It has excellent resistance to rapidly flowing brackish water or
seawater.
It is particularly resistant to hydrochloric and hydrofluoric acids
when they are de-aerated.
The alloy is slightly magnetic at room temperature.
Monel 400 is widely used in the chemical, oil and marine
industries.
Monel 400 Nickel Alloy Flange Packaging
Monel 400 Nickel Alloy Flanges are widely used in various
industries including petrochemical, oil and gas,
power generation, bulk liquid transportation, chemicals,
pharmaceuticals, pulp and paper manufacturing,
textiles and others. All our Monel 400 Nickel Alloy Flange are
manufactured in accordance with international
standards. Monel 400 Nickel Alloy Flanges are packaged to ensure
that there is no damage during transit.
In case of exports, standard export packaging is done in wooden
cases. All Monel 400 Nickel Alloy Flanges
are marked with Grade, Lot No, Size, Degree and our trade mark. On
special requests we can also, make
custom marking on Monel 400 Nickel Alloy Flanges.
Product Attribute
| Place of Origin | China | Brand Name | BOYUE |
| Standard | ASME B16.5 | Type | Weld Neck Flange |
| ModelNumber | monel 400
| Thickness | Sch40s,Sch80s,sch160 |
| Packing | Ply-Wood Cases | Payment | 30%TT+70% Balance |
Supply Ability:30000Pieces / per Month
Packaging & Delivery
Packaging Details:Generally ply wooden case or following customer's
requirement.
Port:Shanghai/Tianjin
Commerce Clause
| Price: | Depending on quantity |
| Minimum Order Quantity | 1 PCS |
| Payment Terms: | T/T or Western Union or LC |
| Supply Ability: | 3,0000pcs per month |
| Delivery Time: | 10-100 days depending on quantity |
| Packaging Details: | PLY-WOODEN CASE OR PALLET
|
Why Choose Us
1. One-Stop Service,One Single Source.
2. No MOQ.
3. Best quality,competitive price
4. Fast Reply.
5. On-Time Delivery
6. Professional sales and technical team .
