Forged Duplex Steel Flanges A182 F60 F53 F51UNS S32750 S32205 S31803 Size 1/2'-24'

• RCF Size and Pressure Rating
  • 1/2”~48” in size and Class 150# to 2500# in pressure rating.
  • Bigger size and higher pressure rating on request.
• RCF Materials
  • ASTM A105, A350 LF2, LF6, A694 F52~F70
  • AISI 4130, AISI 8630
  • A182 F316/316L, F51, F53, F55, Inconel 625, Incoloy 825.
  • Other material on request
• RCF Gasket

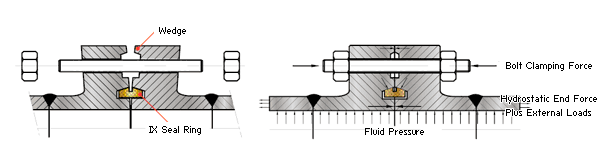

• • RCF IX seal ring, axial forces are exerted on the taper of the metal seal ring and translated into a radial sealing force. Furthermore with increased pre-load, the bevel is closed and face to face contact is achieved at the outer wedge while most of the bolt pre-load is transferred as compressive forces between the flange faces at the heel.
• RCF Design and Verification
• • BOYUE Steel provides calculation service based on ASME section VIII Division 1, 2 and 3. Also we have ANSYS software engineers to do the analysis and design verification

Compact Flanges (RCF ), NORSOK L005 , A182 F316/316L, F51, F53, F55, Inconel 625, Incoloy 825, A105, A350 LF2, LF52-70

•
• RCF NORSOK NCF5 Series

• RCF Advantage
• • Space saving
    • Weight saving up to 70%~80% than ANSI flanges
  • Double Independent Seals make it er
    • Positive sealing method
  • Integrated sealing system (both inside and outside)
    • Larger range in design temperature and pressure
• RCF Working Principle
• • The RCF compact flange design principle is that the flange face includes two independent seals. The first seal is created by application of seal seating stress at the flange heel. The main seal is the IX seal ring. The seal ring force is provided by the elastic stored energy in the stressed seal ring. Any heel leakage will give internal pressure acting on the seal ring inside intensifying the sealing action.

Materials: Carbon, Stainless, Duplex, Aluminum Bronze, Copper Alloys, Naval Brass, Copper Nickel, Pure Copper Super Duplex, Ni-Alloys, Exotic materials, and others as sought

BOYUE GROUP are professional for "Tubesheet " for “Shell & Tube Heat Exchanger” application, we are available in many shapes, sizes and have been used in industry for over 20 years. In our group we are various sub design types: Fixed, U-tube and Floating tubesheet. Variations of all can be denoted as type “E”, “F”, “G”, “H”, “J”, “K” or “X”.

The main applications are where high pressure/temperatures are key considerations. Loosely, general designs consist of the/an outer shell in which resides a tube bundle (these can be configured as finned, plain etc) sealed at each end by a tube sheet which isolates the tubes and the outer shell. Shell & tube heat exchangers have the capability to transfer large amounts of heat at low(er) costs.

This, in principle, down to both design simplicity and effectiveness – large tube surface for reduced weight, volume of liquid and importantly floor space. Whilst there is a wide variety to choose from there are certain key components similar in all. Tubesheets have tubes attached to them within the body or “shell” of the heat exchanger. The tubes allow the movement of a given medium (gas/fluid) through the shell chamber stopping it mixing with a second fluid medium that lies outside these tubes.

As long as there is a temperature difference between these, in effect, the two flow past one another exchanging heat without ever mixing. Tubesheets can be fixed or floating dependent on the application the heat exchanger is designed for.Tubesheets are a critical component of the final design. There are a multitude of materials they can be manufactured from. Material selection is made after careful consideration as it is in contact with both fluids. It must therefore have the necessary corrosion resistance, electromechanical and metallurgical properties associated for its given working environment.The tubesheets themselves contain holes drilled into them.

This, in a given, very specific design configuration, at very precise locations with critical tolerances. The amounts of holes can range from a few to thousands. These pattern or “pitch” holes are relative to each other tubesheet within the shell. This pitch changes tube distance, angle and flow direction. These parameters have been varied to maximize the heat transfer effectiveness.

Because these tubesheets are the main, critical, internal components BOYUE GROUP manufactures directly to OEM drawings issued files.

BOYUE GROUP considerable experience in this highly specialized area means that whatever the requirement, whatever the timescale, we have the technical, in house experience and know-how to approach a given task, deliver on time and in budget. This is why the company is entrusted to manufacture to key, blue chip clients across the globe.

Supply Ability:40000Pieces / per Month
Packaging & Delivery
Packaging Details:Generally plywooden case or following customer's requirement.
Port:Shanghai/Tianjin

Commerce Clause

Why Choose Us

1. One-Stop Service,One Single Source.
2. No MOQ.
3. Best quality,competitive price
4. Fast Reply.
5. On-Time Delivery
6. Professional sales and technical team .

FAQ

Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)
Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.
Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.
Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.
Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.

BoYue Industrial (Shanghai)Co., Ltd. is a professional, young and dynamic enterprise. Adhering to the concept of “survival by quality, development by innovation, cooperation by service”, we provide customers with reliable quality, reasonable price and stable delivery time.

Our main products include steel plate series, pipe series, pipe fittings series, flange series and other related products.

We have a complete sales team, technical team, after-sales service team and large and reliable supply factory, all kinds of certificates. Make sure you get the most reliable products, the most professional technical support and attentive service.

We welcome friends from all over the world to visit our company.

In order to comply with the global modernization services development trends and eliminating the varieties distress of the global enterprise‘s purchase in the consumables, which especially BoYue in products. We coordinate the pressure pipe manufacturer which with the scale of production, quality control and high cost performance (has passed ISO 9001 quality series attestation, ccs, DNV,PED/97/23/EC,AD2000-WO, special equipment manufacturing license,ASME-SA182,) through a variety of effective assort mechanism to make up the shortage of supply and Post-processing of VAT enterprise, and to supply high quality pipe fittings, because of the superior quality and good service, we have established long term business cooperation with more than 30 countries and areas,which covers Europe, Africa, South America, North America, Middle East, Taiwan and South East Asia and so on.

With many years effort and support from our valuable customers, these products have obtained a big market share in the world. Our business principle is "Superior quality, Competitive price, Timely delivery and Considerate service " Standing to the principle of “Enterprises focus on the core business”, we will actively promotes the globalization of business strategy approach, using advanced supply chain management technology to service for clients with higher quality and more competitiveness ‘ s products. At the same time, we sincerely reply your inquiry, honesty waiting for your visiting and wish to have cooperation with you at the any time. We welcome all the customers to contact us for more information. We assure you, with our technical knowledge and experience, our company will be one of your Stable, Continuate business partner in China!
