1/2"-48" Slip On Nickel Alloy Pipe Flanges ASTM B564 Hastelloy C22 Flanges DIN2543/2544

1/2"-48" Slip On Nickel Alloy Pipe Flanges ASTM B564 Hastelloy C22 Flanges DIN2543/2544

DIN 2544 Slip-On Flanges PN25 Forged/Cast Steel Flanges

Pipe		Flange						Neck				Raised Face		Bolts					Arropx. Weight (kg)
DN	d₁ DIN (ISO)*	D	b			k	h₁	d₃ DIN (ISO)	s	r	h₂	d₄	f	#	Dia. of Bolt		d₂	Weld- ing Nack	Slip- on	Blind
DN	d₁ DIN (ISO)*	D	Welding Nack	Slip-on	Blind	k	h₁	d₃ DIN (ISO)	s	r	h₂	d₄	f	#	Dia. of Bolt		d₂	Weld- ing Nack	Slip- on	Blind
10	14 (17.2)	90	16	-	16	60	35	25 (28)	1.8	4	6	40	2	4	M12	1/2"	14	0.66	0.72	0.62
15	20 (21.3)	95	16	16	16	65	38	30 (32)	2	4	6	45	2	4	M12	1/2"	14	0.76	0.81	0.74
20	25 (26.9)	105	18	18	18	75	40	38 (40)	2.3	4	6	58	2	4	M12	1/2"	14	1.06	1.24	1.05
25	30 (33.7)	115	18	18	18	85	40	42 (45)	2.6	4	6	68	2	4	M12	1/2"	14	1.3	1.38	1.31
32	38 (42.4)	140	18	18	18	100	42	52 (56)	2.6	6	6	78	2	4	M16	5/8"	18	1.88	2.03	1.82
40	44.5 (48.3)	150	18	18	18	110	45	60 (64)	2.6	6	7	88	3	4	M16	5/8"	18	2.33	2.35	2.11
50	57 (60.3)	165	20	20	20	125	48	72 (75)	2.9	6	8	102	3	4	M16	5/8"	18	2.82	3.20	2.91
65	76.1	185	22	22	22	145	52	90	2.9	6	10	122	3	8	M16	5/8"	18	3.74	4.29	4.13
80	88.9	200	24	24	24	160	58	105	3.2	8	12	138	3	8	M16	5/8"	18	4.75	5.88	5.21
100	108 (114)	235	24	24	24	190	65	128 (134)	3.6	8	12	162	3	8	M20	3/4"	23	6.52	7.54	7.08
125	133 (139)	270	26	26	26	220	68	155 (162)	4	8	12	188	3	8	M24	7/8"	27	9.07	10.8	10.4
150	159 (168)	300	28	28	28	250	75	182 (192)	4.5	10	12	218	3	8	M24	7/8"	27	11.8	14.5	13.9
200	216 (219)	360	30	30	30	310	80	244	6.3	10	16	278	3	12	M24	7/8"	27	17	22.3	21.5
250	267 (273)	425	32	32	32	370	88	292 (298)	7.1	12	18	335	3	12	M27	1"	30	24.4	33.5	32.5
300	318 (323)	485	34	34	34	430	92	352	8	12	18	395	4	16	M27	1"	30	31.2	46.3	44.7
350	368 (355)	555	38	38	38	490	100	398	8	12	20	450	4	16	M30	1-1/8"	33	44.2 47.2	68.0	65.9
400	419 (406)	620	40	40	40	550	110	452	8.8	12	20	505	4	16	M33	1-1/4"	36	58 62	89.7	87.0
500	521 (508)	730	44	44	44	660	125	558	10	12	20	615	4	20	M33	1-1/4"	36	89.6	138	134

In Detail

Product Attribute

Place of Origin	China	Brand Name	BOYUE
Standard	ASME B16.5	Type	SO Flange
ModelNumber	Hastelloy C22	Thickness	Sch40s,Sch80s,sch160
Packing	Ply-Wood Cases	Payment	30%TT+70% Balance

Supply Ability:30000Pieces / per Month

Packaging & Delivery

Packaging Details:Generally ply wooden case or following customer's requirement.

Port:Shanghai/Tianjin

Commerce Clause

Price:	Depending on quantity
Minimum Order Quantity	1 PCS
Payment Terms:	T/T or Western Union or LC
Supply Ability:	3,0000pcs per month
Delivery Time:	10-100 days depending on quantity
Packaging Details:	PLY-WOODEN CASE OR PALLET

1/2"-48" Slip On Nickel Alloy Pipe Flanges ASTM B564 Hastelloy C22 Flanges DIN2543/2544

Why Choose Us

1.One-Stop Service,One Single Source.

2.No MOQ.

3.Best quality,competitive price

4.Fast Reply.

5.On-Time Delivery

6.Professional sales and technical team .

FAQ

Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)

Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.

Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.

Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.

Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.

Product Tags:


*From:	Your email address is incorrect!
*To:	BoYue Industrial (Shanghai)Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Explore more Slip On Pipe Flanges products from this supplier

Find Similar Products By Category:

Hardware

Hot Searches:

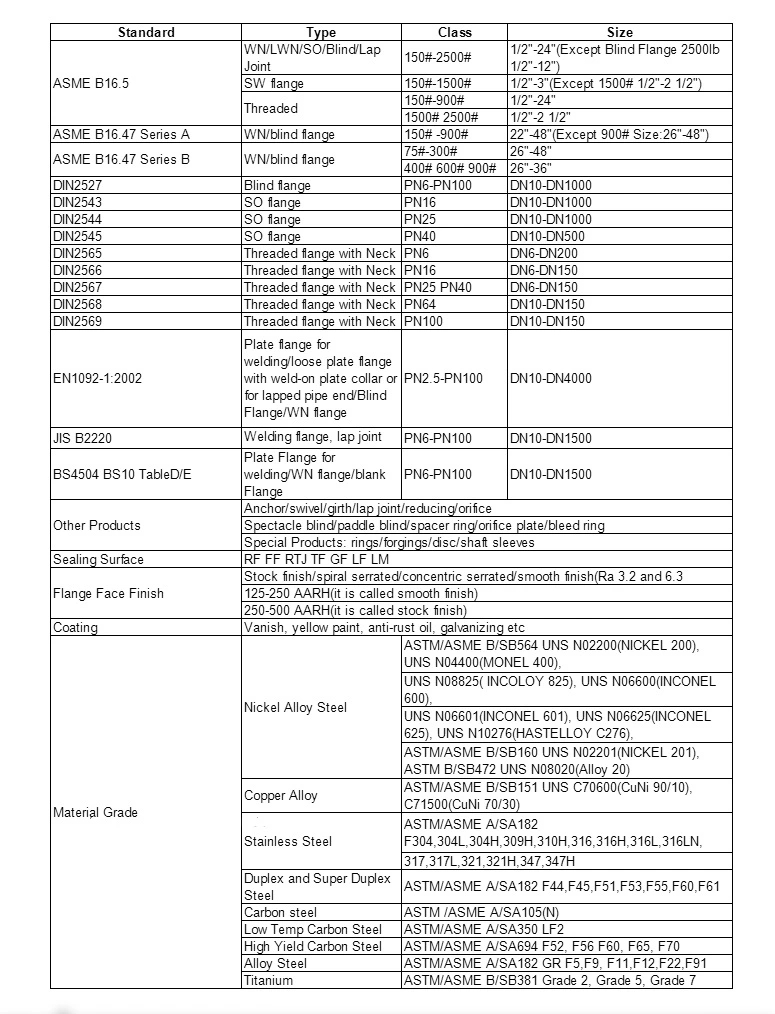

Standard	Type		Class	Size
ASME B16.5	WN/LWN/SO/Blind/Lap Joint		150#-2500#	1/2"-24" (Except Blind Flange 2500lb 1/2"-12")
	SW flange		150#-1500#	1/2"-3" (Except 1500# 1/2"-2 1/2")
	Threaded		150#-900#	1/2"-24"
			1500# 2500#	1/2"-2 1/2"
ASME B16.47 Series A	WN/blind flange		150# -900#	22"-48" (Except 900# Size:26"-48")
ASME B16.47 Series B	WN/blind flange		75#-300#	26"-48"
			400# 600# 900#	26"-36"
DIN2527	Blind flange		PN6-PN100	DN10-DN1000
DIN2543	SO flange		PN16	DN10-DN1000
DIN2544	SO flange		PN25	DN10-DN1000
DIN2545	SO flange		PN40	DN10-DN500
DIN2565	Threaded flange with Neck		PN6	DN6-DN200
DIN2566	Threaded flange with Neck		PN16	DN6-DN150
DIN2567	Threaded flange with Neck		PN25 PN40	DN6-DN150
DIN2568	Threaded flange with Neck		PN64	DN10-DN150
DIN2569	Threaded flange with Neck		PN100	DN10-DN150
EN1092-1:2002	Plate flange for welding/ loose plate flange with weld-on plate collar or for lapped pipe end/Blind Flange/WN flange		PN2.5-PN100	DN10-DN4000
JIS B2220	Welding flange, lap joint flange, threaded flange		PN6-PN100	DN10-DN1500
BS4504 BS10 TableD/E	Plate Flange for welding/ WN flange/blank Flange		PN6-PN100	DN10-DN1500
Other Products	Anchor/swivel/girth/l ap joint/reducing/orifice
	Spectacle blind/paddle blind/ spacer ring/orifice plate/bleed ring
	Special Products: rings/ forgings/disc/shaft sleeves
Sealing Surface	RF FF RTJ TF GF LF LM
Flange Face Finish	Stock finish/spiral serrated/ concentric serrated/smooth finish (Ra 3.2 and 6.3 micrometers)
	125-250 AARH(it is called smooth finish)
	250-500 AARH(it is called stock finish)
Coating	Vanish, yellow paint, anti-rust oil, galvanizing etc
Material Grade	Nickel Alloy Steel		ASTM/ASME B/SB564 UNS N02200(NICKEL 200), UNS N04400(MONEL 400),
			UNS N08825( INCOLOY 825),UNS N06600(INCONEL 600),
			UNS N06601(INCONEL 601), UNS N06625(INCONEL 625), UNS N10675(HASTELLOY C276),
			ASTM/ASME B/SB160 UNS N02201(NICKEL 201), ASTM B/SB472 UNS N08020(Alloy 20)
	Copper Alloy		ASTM/ASME B/SB151 UNS C70600(CuNi 90/10), C71500(CuNi 70/30)
	Stainless Steel		ASTM/ASME A/SA182 F304,304L,304H,309H,310H, 316,316H,316L,316LN,
			317,317L,321,321H,347,347H
	Duplex and Super Duplex Steel		ASTM/ASME A/SA182 F44,F45,F51,F53,F55,F60,F61
	Carbon steel		ASTM /ASME A/SA105(N)
	Low Temp Carbon Steel		ASTM/ASME A/SA350 LF2
	High Yield Carbon Steel		ASTM/ASME A/SA694 F52,F56 F60, F65, F70
	Alloy Steel		ASTM/ASME A/SA182 GR F5, F9, F11,F12,F22,F91
	Titanium		ASTM/ASME B/SB381 Grade 2, Grade 5, Grade 7
Carbon Steel		ASTM A105
Alloy Steel:		ASTM A182 F1/F5/F9/F11/F22/F91/F92 Etc
Duplex Steel:		Duplex F51 2205 UNS S31803, Super Duplex 2507 (UNS S32750), F55 (UNS S32760)
Stainless Steel:		ASTM A182 F304 F304L F304H F309 F310 F310S F316 F316L F316 F316Ti F317 F317L F321 F347 F347H
Duplex Stainless Steel:		ASTM A182 F51/F53/F55/F60
Nicke alloys:		Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800
Cu-Ni:		90/10,70/30
