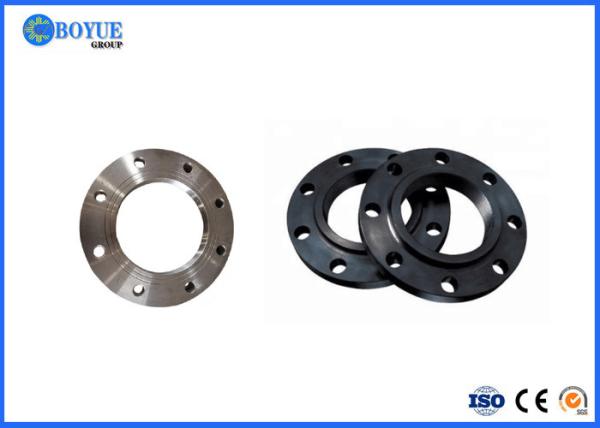

Forged ASME B16.5 Slip On Pipe Flanges 316L Duplex Stainless Steel 1/2" - 60" Size

1. Duplex stainless steel 316L SO definition

Slip On Flanges are preferred by some contractors, over the Weld-neck, because of the lower initial cost. However, this may be offset by the added cost of the two fillet welds required for proper installation. The strength of the slip-on flange is ample for it’s rating, but its life under fatigue conditions is considered to be only one-third that of the weld-neck flange.

The slip on flange may be attached to the end of a piece of pipe or to one or more ends of a pipe fitting. The slip-on flange is positioned so the inserted end of the pipe or fitting is set back or short of the flange face by the thickness of the pipe wall plus 1/8 of an inch. This allows for a fillet weld inside the SO flange equal to the thickness of the pipe wall without doing any damage to the flange face. The back or outside of the flange is also welded with a fillet weld.

A variation of the Slip On flange also exists. This is the Slip-On Reducing Flange. This is simply a larger (say a 14″) Slip-On flange blank that, instead of the Center (pipe) hole being cut out (or drilled out) for 14″ pipe it is cut out for a 6″ (or some other size) pipe. The SO Reducing flange is basically used for reducing the line size where space limitations will not allow the length of a weld neck flange and reducer combination. The use of the Slip-On Reducing Flange should only be used where the flow direction is from the smaller size into the larger size.

It is welded both inside and out to provide suffcient strength and prevent leakage.

Slip-on flanges are all bored slightly larger than the O.D. of the pipe. They are preferred over welding neck flanges bu many users due to their lower intial cost, but final intallation cost is probably not much less than that of the welding neck flange because of the additional welding involved.

2. 316L SO flange&Stud bolt ASME B16.5 dimension

NPS 1/2 - I.D. 22.3

3. Advantages of stainless steel 316L slip on flanges:

• Low cost installation
• Less time needed to spent on ensuring the accuracy of the cut pipe
• They are somewhat easier to align
• The slip-on flanges have low hub because the pipe slips into the flange before welding
• The flange is welded both inside and outside to provide sufficient strength
• They prevent leakage

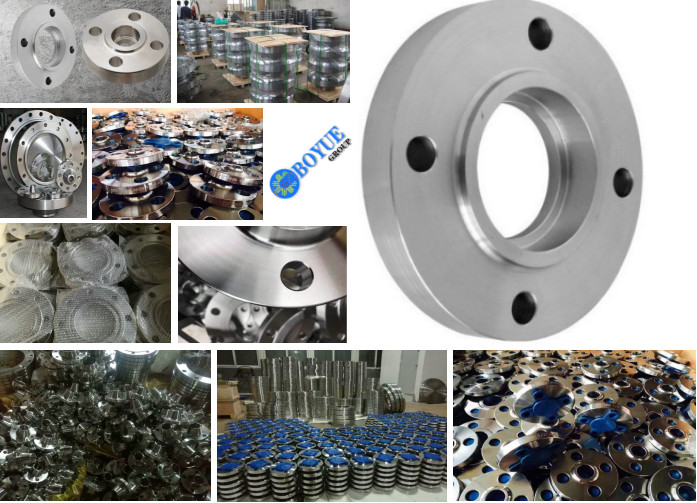

4. Duplex stainless steel 316L SO flange

BoYue Industrial (Shanghai)Co., Ltd. is a professional, young and dynamic enterprise. Adhering to the concept of “survival by quality, development by innovation, cooperation by service”, we provide customers with reliable quality, reasonable price and stable delivery time.

Our main products include steel plate series, pipe series, pipe fittings series, flange series and other related products.

We have a complete sales team, technical team, after-sales service team and large and reliable supply factory, all kinds of certificates. Make sure you get the most reliable products, the most professional technical support and attentive service.

We welcome friends from all over the world to visit our company.

In order to comply with the global modernization services development trends and eliminating the varieties distress of the global enterprise‘s purchase in the consumables, which especially BoYue in products. We coordinate the pressure pipe manufacturer which with the scale of production, quality control and high cost performance (has passed ISO 9001 quality series attestation, ccs, DNV,PED/97/23/EC,AD2000-WO, special equipment manufacturing license,ASME-SA182,) through a variety of effective assort mechanism to make up the shortage of supply and Post-processing of VAT enterprise, and to supply high quality pipe fittings, because of the superior quality and good service, we have established long term business cooperation with more than 30 countries and areas,which covers Europe, Africa, South America, North America, Middle East, Taiwan and South East Asia and so on.

With many years effort and support from our valuable customers, these products have obtained a big market share in the world. Our business principle is "Superior quality, Competitive price, Timely delivery and Considerate service " Standing to the principle of “Enterprises focus on the core business”, we will actively promotes the globalization of business strategy approach, using advanced supply chain management technology to service for clients with higher quality and more competitiveness ‘ s products. At the same time, we sincerely reply your inquiry, honesty waiting for your visiting and wish to have cooperation with you at the any time. We welcome all the customers to contact us for more information. We assure you, with our technical knowledge and experience, our company will be one of your Stable, Continuate business partner in China!

Our main products as follows:

Stainless steel pipe & tube

(seamless pipe / welded pipe / square pipe / rectangular tube,duplex stainless / inconel tube)

Carbon / alloy steel pipe & tube

(seamless pipe / ERW / SSAW / LSAW / UOE / hollow section pipe / Galvanized Pipe)

Tubing and casting

(line pipe,water pipeline,gas pipeline,oil pipeline)

Special steel tube

(copper tube/titanium tube/aluminium tube/nickel alloy )

Flange

(DIN flange/ AISI flange/blind flange/welding flange/stainless flange/slip on flange)

steel sheet / coil

(stainless steel/carbon steel/alloy steel/galvanized steel/aluminium )

Valve

(ball valve/gate valve/butterfly valve/globe valve/swing check valve/ check valve)
