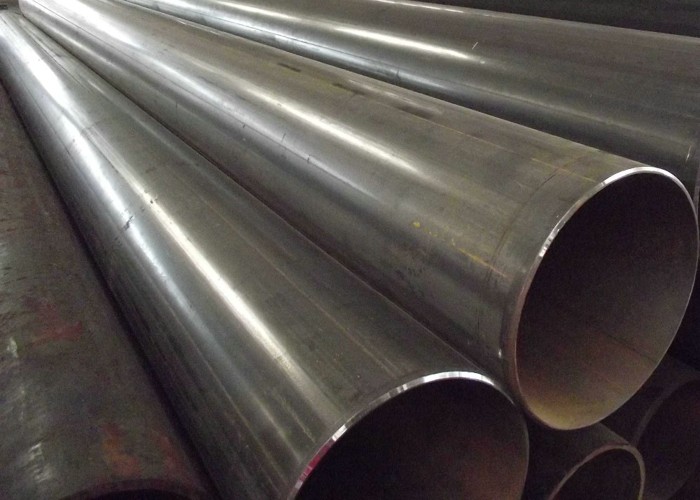

DIN 17175 219~965mm OD Seamless Steel Tubing / Seamless Mechanical
Tubing OD1/2'-48'
Standard: DIN17175
Main steel grades: 15Mo3, 13CrMo44, 10CrMo910
Application: For high-pressure boilers(working pressure is generally 9.8 Mpa
above, working temperature is between 450 °C and 650 °C) hot
surface pipes, coal economizers, superheaters, reheaters,
petrochemical industry etc.
Chemical Requirements & Mechanical Proterties:
| Grade | C | Si | Mn | P | S | Cr | Mo |
| 15Mo3 | 0.12-0.20 | 0.10-0.35 | 0.40-0.80 | ≤0.035 | ≤0.035 | / | 0.25-0.35 |
| 13CrMo44 | 0.10-0.18 | 0.10-0.35 | 0.40-0.70 | ≤0.035 | ≤0.035 | 0.70-1.10 | 0.46-0.65 |
| 10CrMo910 | 0.08-0.15 | ≤0.50 | 0.40-0.70 | ≤0.035 | ≤0.035 | 0.20-0.25 | 0.90-1.20 |
| Grade | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation(%) |
| 15Mo3 | ≥275 | 450-600 | 20 |
| 13CrMo44 | ≥290 | 440-590 | 20 |
| 10CrMo910 | ≥280 | 450-600 | 18 |
Mark: As required.
BOYUE STEEL supply carbon steel seamless pipe to Sudan Petroleum , Iran Petroleum,
Peru Petroleum, Colombia Petroleum, ...Every year we export at
least 150000 tons of carbon steel
seamless pipe to 42 countries .
We produce the highest quality steel products. Customers use our
seamless standard and line steel pipe for a variety of critical
applications, including the transmission of crude oil, natural gas
and petroleum products, refining and process piping for the
chemical and petro-chemical industries, structural members in the
construction industry, slurry pipelines as well as water
transmission line applications.
sage: Used for low pressure liquid delivery, such as water, gas,
and oil.
ASTM A672 Standard Specification for Electric-Fusion-Welded Steel
Pipe for
High Pressure Service at Moderate Temperature covers
electrical-fusion-welded steel
pipe for high-pressure service at moderate temperature. Heat
treatment may or may not be
required to attain the desired properties or to comply with
applicable code requirements.
An analysis of each mill heat of plate material shall be made,
also, an analysis of the
finished deposited weld material from each 500 ft or fraction
thereof shall be made.
The mechanical test requirements includes one tension test specimen
to represent each
lot of finished pipe, and one transverse-guided-weld-bend test (two
specimens) to
represent each lot of finished pipe. Also, radiographic examination
shall be made on the
full length of each weld.
1.1 This specification covers steel pipe: electric-fusion-welded
with filler metal added,
fabricated from pressure-vessel quality plate of any of several
analyses and strength levels
and suitable for high-pressure service at moderate temperatures.
Heat treatment may or
may not be required to attain the desired properties or to comply
with applicable code
requirements. Supplementary requirements are provided for use when
additional testing or
examination is desired.
1.2 The specification nominally covers pipe 16 in. [400 mm] in
outside diameter or larger
with wall thicknesses up to 3 in. [75 mm], inclusive. Pipe having
other dimensions may be
furnished provided it complies with all other requirements of this
specification.
1.3 Several grades and classes of pipe are provided.
1.3.1 Grade designates the type of plate used.
1.3.2 Class designates the type of heat treatment performed during
manufacture of the
pipe, whether the weld is radiographically examined, and whether
the pipe has been
pressure tested.
» ASME SA672 Gr B55 » ASTM A672 Gr B60 » ASME SA672 Gr B60
» ASTM A672 Gr B65 » ASME SA672 Gr B65 » ASTM A672 Gr B70
» ASME SA672 Gr B70 » ASTM A672 Gr C60 » ASME SA672 Gr C60
» ASTM A672 Gr C65 » ASME SA672 Gr C65 » ASTM A672 Gr C70
» ASME SA672 Gr C70 » ASTM A672 Gr CD70 » ASME SA672 Gr CD70
» ASME SA672 Gr B55 » ASTM A672 Gr B60 » ASME SA672 Gr B60
» ASTM A672 Gr B65 » ASME SA672 Gr B65 » ASTM A672 Gr B70
» ASME SA672 Gr B70 » ASTM A672 Gr C60 » ASME SA672 Gr C60
» ASTM A672 Gr C65 » ASME SA672 Gr C65 » ASTM A672 Gr C70
» ASME SA672 Gr C70 » ASTM A672 Gr CD70 » ASME SA672 Gr CD70
A672 Gr.C70 Applications
Flares stacks
FEED for heaters
Hydrocracking
Process piping applications
Power plant piping
Refineries
LNG terminals
Storage for natural gas
Inspection and Test: chemical composition test, mechanical properties test(tensile,
yield, elongation), process properties test(flatting, flaring,
bending, hardness, impact, etc.), appearance and size test,
non-destructive inspection test, hydrostastic test.
Delivery status: Annealed, normalized, normalized+Tempered, etc.
End: plain end, beveled end, threaded
End protection: plastic caps
Outside coating: black painting, anti-corrosion oil,galvanized
finish, finish as per customer requirements.
Packing: Exporting package/wooden box /as requirement
| Place of Origin | China | Brand Name | BOYUE |
| Standard | ANSI, ISO, ASME, DIN, ASTM | Type | Seamless |
| ModelNumber | Carbon Steel Pipe | Thickness | SCH 5-SCH XXS |
| Packing | Depending on customer | Payment | 30%TT+70% Balance |
Supply Ability:40000Pieces / per Month
Packaging & Delivery
Packaging Details:Generally plywooden case or following customer's
requirement.
Port:Shanghai/Tianjin
| Minimum Order Quantity: | 1pcs |
| Price: | Depending on quantity |
| Payment Terms: | T/T or Western Union or LC |
| Supply Ability: | 40000 ton per month |
| Delivery Time: | 10-100 days depending on quantity |
| Packaging Details: | Depending on customer |
Why Choose Us
1. One-Stop Service,One Single Source.
2. No MOQ.
3. Best quality,competitive price
4. Fast Reply.
5. On-Time Delivery
6. Professional sales and technical team .
FAQ
Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing
of Large-size products.(View Mor)
Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce
based on your drawings.
Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with
your permission.
Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.
Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to
ensure quality standard, but it’s charged according to your
drawing.
