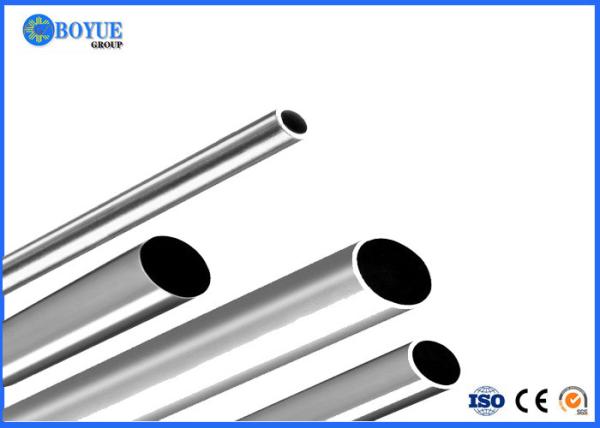

ASTM B163 / ASME SB-163 Hastelloy B3 Pipe UNS N10675 OD 1/2" - 48"
SCH 5 - SCH
1.Hastelloy B3 description
Hastelloy B-3 is a nickel-molybdenum alloy with excellent
resistance to pitting, corrosion,
and stress-corrosion cracking plus, thermal stability superior to
that of alloy B-2. In addition,
this nickel steel alloy has great resistance to knife-line and
heat–affected zone attack. Alloy B-3
also withstands sulfuric, acetic, formic and phosphoric acids, and
other non-oxidizing media.
Furthermore, this nickel alloy has excellent resistance to
hydrochloric acid at all concentrations
and temperatures. Hastelloy B-3’s distinguishing feature is its
ability to maintain excellent
ductility during transient exposures to intermediate temperatures.
Such exposures are routinely
experienced during heat treatments associated with fabrication.
Chemical Composition, %
| Ni | Mo | Fe | C | Co | Cr | Mn | Si | Ti | W | Al | Cu |
| 65.0 min | 28.5 | 1.5 | .01 max | 3.0 max | 1.5 | 3.0 max | .10 max | .2 max | 3.0 max | .50 max | .20 max |
2.What is ASTM B163/ASME SB-163
This specification covers seamless tubes of nickel and nickel alloy
for use in condenser and heat-
exchanger service. This covers outside diameter and average wall,
or outside diameter and minimum wall
tube. Tube shall be furnished in the alloys and conditions defined
by this specification. The material shall
conform to the composition limits of nickel, copper, molybdenum,
iron, manganese, carbon, silicon,
chromium, aluminium, titanium, phosphorus, cerium, zirconium,
yttrium, born, cobalt, columblum, tungsten,
and nitrogen specified. Tensile strength, yield strength,
elongation, and Rockwell hardness of the material
shall conform to the required mechanical properties set by this
specification. Test methods such as
chemical analysis, tension, rounding procedure, Rockwell hardness,
grain size and hardness conversion
shall be performed.
3.UNS N10675 Hastelloy B3 Pipe SPECIFICATION
Dimensions: ASTM, ASME and API
Standard: ASTM B163/ASME SB-163
Size: 15 NB to 150 NB IN
Outer diameter: 1/2" - 48".
Specialized in: Large Diameter Size
Grade: UNS N10675 Hastelloy B3
Schedule: SCH 5 - SCH XXS
Form: Round, Square, Rectangular, Hydraulic Etc
Type : Welded / ERW / Fabricated
Length : Single Random, Double Random & Cut Length.
End: Plain End, Beveled End, Threaded
| Out diameter | Wall thickness | Length |
| NB Sizes (in stock) | 1/8” ~ 8” | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 | Upto 6 Meters |
| Seamless (Custom Sizes) | 5.0mm ~ 203.2mm | As per requirement | Upto 6 Meters |
| Welded (in Stock + Custom Sizes) | 5.0mm ~ 1219.2mm | 1.0 ~ 15.0 mm | Upto 6 Meters |
4.UNS N10675 Hastelloy B3 Pipe Application
| Petrochemical | Oil & Gas | Paper | Refineries | Nuclear Power |
| Cement | Sugar | Power Plant | Fertilizers | Breweries |
| Chemical | Petrochemical | Shipbuilding | Defence | Mining |
| Steel Plant | Construction | Oil Mills | Paper | Engineering Co. |
5.Documentation
• Commercial Invoice which includes HS Code
• Packing List including net weight and gross weight, number of
boxes, Marks and Numbers
• Certificate of Origin legalized/attested by Chamber of Commerce
or Embassy
• Fumigation Certificates
• Raw Material Test Reports
• Material Traceability Records
• Quality Assurance Plan (QAP)
• Heat Treatment Charts
• Test Certificates certifying NACE MR0103, NACE MR0175
• Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204
3.2
• Guarantee Letter
• NABL approved Laboratory Test Reports
• Welding Procedure Specification/Procedure Qualification Record,
WPS/PQR
• Form A for the purposes of the Generalized System of Preferences
(GSP)
Product Attribute
| Place of Origin | China | Brand Name | BOYUE |
| Standard | ASME B16.5 | Type | Alloy Steel Pipe |
| Model Number | BY0039871 | Thickness | Sch10-SchXXS |
| Packing | Ply-Wood Cases | Payment | 30%TT+70% Balance |
Supply Ability:2000ton / per Month
Packaging & Delivery
Packaging Details:Generally ply wooden case or following customer's
requirement.
Port:Shanghai/Tianjin
Commerce Clause
| Minimum Order Quantity: | 1pcs |
| Payment Terms: | T/T or Western Union or LC |
| Supply Ability: | 2000ton / per Month |
| Delivery Time: | 7-25 days depending on quantity |
| Packaging Details: | PLY-WOODEN CASE OR PALLET |
Main Features
1) Packed and labeled according to the regulations and customer's
requests.
2) 15days in common, time can be less if common grade 201, 304/L,
316/L, 409L, 410, 420, 439.
3) Our factory is in Jiangsu province, and cargo are always loaded
in Shanghai port, so EXW, FOB Sh
anghai or CIF can be as your request.
Packing Details
Export standard package,bundled or be required.
The inner size of container is below:
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
Octal supply below ranges for the stainless steel pipe and tube:
Standards:GB,AISI,ASTM,DIN,EN,SUS,UNS etc
Duplex stainless steel pipe standards: ASTM A789/ ASME SA 789. ASTM
A790/ ASME SA 790
Material: Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel
Alloy
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm;Length 2000-5000mm
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm
Product Description:
| name | Inconel Alloy NS111(Incoloy800) Steel pipe |
| Material | Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy |
| Shape | Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,Sheet |
| Grade | Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron
100),2304,904L |
| Others: 253Ma,254SMo,654SMo,F50(UNS S32100)F60,F61,F65,1J22,N4,N6
etc |
| Alloy : Alloy 20/28/31; |
| Hastelloy: Hastelloy B/ -2/B-3/C22/C-4/S/
C276/C-2000/G-35/G-30/X/N/g; |
Hastelloy B / UNS N10001,Hastelloy B-2 / UNS N10665 / DIN W. Nr. 2.4617,Hastelloy C,Hastelloy C-4 / UNS N06455 / DIN W.
Nr. 2.4610,Hastelloy C-22 / UNS N06022 / DIN W. Nr.
2.4602,Hastelloy C-276 / UNS N10276 / DIN W. Nr. 2.4819,Hastelloy X / UNS N06002 / DIN W.
Nr. 2.4665 |
| Haynes: Haynes 230/556/188; |
| Inconel Series: |
| Inconel 600/601/602CA/617/625/713/718/738/X-750,Carpenter 20; |
Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668,Inconel 601 / UNS
N06601 / DIN W. Nr. 2.4851,
Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856,Inconel 725 / UNS
N07725,Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669,Inconel 600 /
UNS N06600 / DIN W. Nr. 2.4816 |
| Incoloy: Incoloy 800/800H/800HT/825/925/926; |
| GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044 |
| Monel: Monel 400/K500/R405 |
| Nitronic: Nitronic 40/50/60; |
| Nimonic: Nimonic 75/80A/90/A263 ; |
| Specification | Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm;Length 2000-5000mm
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm |
Product
Characteristics | 1.According to the preparation process can be divided into
deformation superalloys,
casting superalloys and powder metallurgy superalloys.
2.According to the strengthening mode, there are solid solution
strengthening type, precipitation
strengthening type, oxide dispersion strengthening type and fiber
strengthening type, etc.. |
| Standard | GB,AISI,ASTM,DIN,EN,SUS,UNS etc |
| Inspection | ISO,SGS,BV and so on. |
| Application | High temperature components such as turbine blades, guide vanes,
turbine disks, high pressure
compressor disks,machine manufacturing
and combustion chambers used in the manufacture of aviation, naval
and industrial gas turbines |
| Packaging | 1. cases packed in wooden cases
2. paper packaging
3. plastic packing
4. foam packaging
Packaging according to customer requirements or products |
| Delivery | 7-25days or according to the product |
| Payment | L/C,D/A,D/P,T/T,Western Union,MoneyGram,According to customer
requirements payments for offline orders. |
