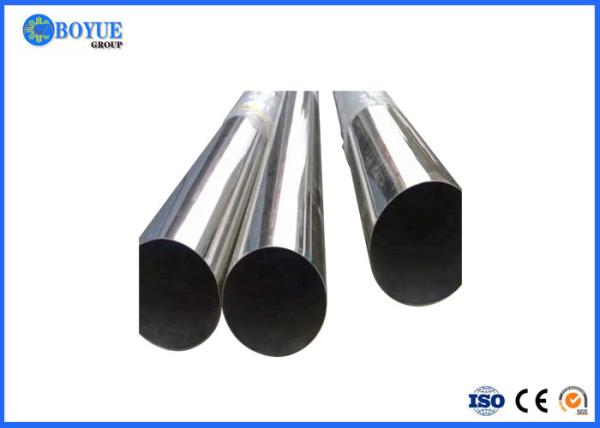

ASTM Cold Rolled Hastelloy Pipe Large Diameter Size Beveled End
Finish High OD1/2-48'
1. Hastelloy B3 description
Hastelloy B-3 is a nickel-molybdenum alloy with excellent
resistance to pitting, corrosion,
and stress-corrosion cracking plus, thermal stability superior to
that of alloy B-2. In addition,
this nickel steel alloy has great resistance to knife-line and
heat–affected zone attack. Alloy B-3
also withstands sulfuric, acetic, formic and phosphoric acids, and
other non-oxidizing media.
Furthermore, this nickel alloy has excellent resistance to
hydrochloric acid at all concentrations
and temperatures. Hastelloy B-3’s distinguishing feature is its
ability to maintain excellent
ductility during transient exposures to intermediate temperatures.
Such exposures are routinely
experienced during heat treatments associated with fabrication.
Chemical Composition, %
| Ni | Mo | Fe | C | Co | Cr | Mn | Si | Ti | W | Al | Cu |
| 65.0 min | 28.5 | 1.5 | .01 max | 3.0 max | 1.5 | 3.0 max | .10 max | .2 max | 3.0 max | .50 max | .20 max |
2. What is ASTM B163/ASME SB-163
This specification covers seamless tubes of nickel and nickel alloy
for use in condenser and heat-
exchanger service. This covers outside diameter and average wall,
or outside diameter and
minimum wall tube. Tube shall be furnished in the alloys and
conditions defined by this
specification. The material shall conform to the composition limits
of nickel, copper, molybdenum,
iron, manganese, carbon, silicon, chromium, aluminium, titanium,
phosphorus, cerium, zirconium,
yttrium, born, cobalt, columblum, tungsten, and nitrogen specified.
Tensile strength, yield strength,
elongation, and Rockwell hardness of the material shall conform to
the required mechanical
properties set by this specification. Test methods such as chemical
analysis, tension, rounding
procedure, Rockwell hardness, grain size and hardness conversion
shall be performed.
3. UNS N10675 Hastelloy B3 Pipe SPECIFICATION
Dimensions: ASTM, ASME and API
Standard: ASTM B163/ASME SB-163
Size: 15 NB to 150 NB IN
Outer diameter: 1/2" - 48".
Specialized in: Large Diameter Size
Grade: UNS N04400 Monel 400
Schedule: SCH 5 - SCH XXS
Form: Round, Square, Rectangular, Hydraulic Etc
Type : Welded / ERW / Fabricated
Length : Single Random, Double Random & Cut Length.
End: Plain End, Beveled End, Threaded
| Out diameter | Wall thickness | Length |
| NB Sizes (in stock) | 1/8” ~ 8” | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 | Upto 6 Meters |
| Seamless (Custom Sizes) | 5.0mm ~ 203.2mm | As per requirement | Upto 6 Meters |
| Welded (in Stock + Custom Sizes) | 5.0mm ~ 1219.2mm | 1.0 ~ 15.0 mm | Upto 6 Meters |
4. UNS N10675 Hastelloy B3 Pipe Application
| Petrochemical | Oil & Gas | Paper | Refineries | Nuclear Power |
| Cement | Sugar | Power Plant | Fertilizers | Breweries |
| Chemical | Petrochemical | Shipbuilding | Defence | Mining |
| Steel Plant | Construction | Oil Mills | Paper | Engineering Co. |
5.Documentation
• Commercial Invoice which includes HS Code
• Packing List including net weight and gross weight, number of
boxes, Marks and Numbers
• Certificate of Origin legalized/attested by Chamber of Commerce
or Embassy
• Fumigation Certificates
• Raw Material Test Reports
• Material Traceability Records
• Quality Assurance Plan (QAP)
• Heat Treatment Charts
• Test Certificates certifying NACE MR0103, NACE MR0175
• Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204
3.2
• Guarantee Letter
• NABL approved Laboratory Test Reports
• Welding Procedure Specification/Procedure Qualification Record,
WPS/PQR
• Form A for the purposes of the Generalized System of Preferences
(GSP)
6. What is cold rolled pipe?
We Cold Rolled Steel Tube from steel that undergoes less heat and
more pressure. Steel manufacturing
takes place below recrystallization at room temperature.
A cold mill outfitted with specially roughened rollers provides
additional processing, giving the steel a
uniform, matte finish. Each cold rolled steel tube comes smooth to
the touch and readily paintable using
essentially any paint system.
Available in a wide range of thicknesses and chemistries, cold
rolled steel tube is best suited for parts with
a fine finish fabricated in a variety of ways: Bending, expansion,
penciling, flattening and extreme deep
drawing.
| Place of Origin | China | Brand Name | BOYUE |
| Standard | ANSI, ISO, ASME, DIN, ASTM | Type | Seamless |
| ModelNumber | Alloy Steel Pipe | Thickness | SCH 5-SCH XXS |
| Packing | Depending on customer | Payment | 30%TT+70% Balance |
Supply Ability:40000Pieces / per Month
Packaging & Delivery
Packaging Details:Generally plywooden case or following customer's
requirement.
Port:Shanghai/Tianjin
Commerce Clause
| Minimum Order Quantity: | 1pcs |
| Price: | Depending on quantity |
| Payment Terms: | T/T or Western Union or LC |
| Supply Ability: | 40000 ton per month |
| Delivery Time: | 10-100 days depending on quantity |
| Packaging Details: | Depending on customer |
Why Choose Us
1. One-Stop Service,One Single Source.
2. No MOQ.
3. Best quality,competitive price
4. Fast Reply.
5. On-Time Delivery
6. Professional sales and technical team .
FAQ
Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing
of Large-size products.(View Mor)
Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce
based on your drawings.
Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with
your permission.
Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.
Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to
ensure quality standard, but it’s charged according to your
drawing.
1. Hastelloy B2 description
Superior resistance to hydrochloric acid, aluminum chloride
catalysts and other strongly reducing
chemicals. Excellent high-temperature strength in inert and vacuum
atmospheres.
Hastelloy B2 is a nickel-molybdenum alloy particularly suited for
equipment handling reducing chemical
environments .Applications in the chemical process industry involving sulfuric,
phosphoric, hydrochloric
and acetic acid. Temperature uses vary from ambient temperature to 1500°F depending
on the
environments (please call for technical advice).
Chemical Composition, %
| Ni | Mo | Fe | C | Co | Cr | Mn | Si |
| Balance | 26.0-30.0 | 2.0 max | 0.02 max | 1.0 max | 1.0 max | 1.0 max | 0.10 max |
| P | S | | | | | | |
| 0.040 max | 0.030 max | | | | | | |
2.What is ASTM B163/ASME SB-163
This specification covers seamless tubes of nickel and nickel alloy
for use in condenser and heat-
exchanger service. This covers outside diameter and average wall,
or outside diameter and minimum wall
tube. Tube shall be furnished in the alloys and conditions defined
by this specification. The material shall
conform to the composition limits of nickel, copper, molybdenum,
iron, manganese, carbon, silicon,
chromium, aluminium, titanium, phosphorus, cerium, zirconium,
yttrium, born, cobalt, columblum, tungsten,
and nitrogen specified. Tensile strength, yield strength,
elongation, and Rockwell hardness of the material
shall conform to the required mechanical properties set by this
specification. Test methods such as
chemical analysis, tension, rounding procedure, Rockwell hardness,
grain size and hardness conversion
shall be performed.
3.UNS N10665 Hastelloy B2 Pipe SPECIFICATION
Dimensions: ASTM, ASME and API
Standard: ASTM B163/ASME SB-163
Size: 15 NB to 150 NB IN
Outer diameter: 1/2" - 48".
Specialized in: Large Diameter Size
Grade: UNS N10665 Hastelloy B2
Schedule: SCH 5 - SCH XXS
Form: Round, Square, Rectangular, Hydraulic Etc
Type : Welded / ERW / Fabricated
Length : Single Random, Double Random & Cut Length.
End: Plain End, Beveled End, Threaded
| Out diameter | Wall thickness | Length |
| NB Sizes (in stock) | 1/8” ~ 8” | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 | Upto 6 Meters |
| Seamless (Custom Sizes) | 5.0mm ~ 203.2mm | As per requirement | Upto 6 Meters |
| Welded (in Stock + Custom Sizes) | 5.0mm ~ 1219.2mm | 1.0 ~ 15.0 mm | Upto 6 Meters |
4.UNS N10665 Hastelloy B2 Pipe Application
| Petrochemical | Oil & Gas | Paper | Refineries | Nuclear Power |
| Cement | Sugar | Power Plant | Fertilizers | Breweries |
| Chemical | Petrochemical | Shipbuilding | Defence | Mining |
| Steel Plant | Construction | Oil Mills | Paper | Engineering Co. |
5.Documentation
• Commercial Invoice which includes HS Code
• Packing List including net weight and gross weight, number of
boxes, Marks and Numbers
• Certificate of Origin legalized/attested by Chamber of Commerce
or Embassy
• Fumigation Certificates
• Raw Material Test Reports
• Material Traceability Records
• Quality Assurance Plan (QAP)
• Heat Treatment Charts
• Test Certificates certifying NACE MR0103, NACE MR0175
• Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204
3.2
• Guarantee Letter
• NABL approved Laboratory Test Reports
• Welding Procedure Specification/Procedure Qualification Record,
WPS/PQR
• Form A for the purposes of the Generalized System of Preferences
(GSP)
6.Hot-Rolling Steel
Hot rolling is a mill process which involves rolling the steel at a
high temperature (typically at a temperature
over 1700° F), which is above the steel’s recrystallization
temperature. When steel is above the
recrystallization temperature, it can be shaped and formed easily,
and the steel can be made in much larger
sizes. Hot rolled steel is typically cheaper than cold rolled steel
due to the fact that it is often manufactured
without any delays in the process, and therefore the reheating of
the steel is not required (as it is with cold
rolled). When the steel cools off it will shrink slightly thus
giving less control on the size and shape of the
finished product when compared to cold rolled.
Uses: Hot rolled products like hot rolled steel
bars are used in the welding and construction trades to make
railroad tracks and I-beams, for example. Hot rolled steel is used
in situations where precise shapes and
tolerances are not required.
