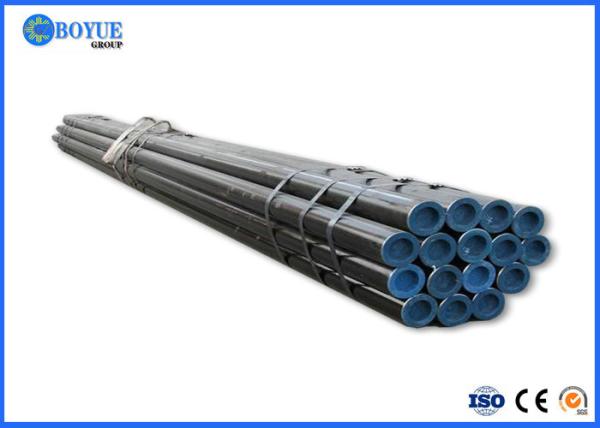

Carbon Seamless Steel Pipe Material 20#,65126-12m Hot Rolled Low OD1/2'-48'

Ask Lasest Price
Brand Name :	BY
Model Number :	BYAS00009
Certification :	ISO/PED/TUV/SGS/LR/BV
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	10000 ton per Month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

Carbon Seamless Steel Pipe Material 20#,65126-12m Hot Rolled Low OD1/2'-48'

Carbon Seamless Steel Pipe Material 20#,65*12*6-12m Hot Rolled Low OD1/2'-48'

Product information

Advantaged Product Specification
English		Chinese
Outside Diameter	Wall	Outside	Wall
(Inch)	thickness	Diameter	thickness
	(Inch)	(mm)	(mm)
From 2 to 8	From 40S to 120S	From 50 to 194	From 8 to 25
Length	From 6m to 12m in accordance with customers' requirements
	Chinese	American	German
Material	10#	ASTM A53-A	St37 DIN1626
&		ASTM A106-A	St37-2 DIN17175
Standard		ASTM A179-C	St35.8 DIN17175
Description		ASTM A192	St35.8 DIN17175
	20#	ASTM A53-B	St42-2 DIN1626
		ASTM A106-B	St45-8 DIN17175
		ASTM A178-C	St45-4 DIN1629
	45#	ASTM A1045	CK45
	16Mn	ASTM A210-C	St52 DIN1629
	37Mn5	J55
	27SiMn
	CrMo	ASTM 4135,4150	CrMo4 DIN17212
	40Cr	ASTM 5140	41Cr4

size range

NPS	OD	WT
INCH	MM	SCH10	SCH20	SCH30	STD	SCH40	SCH60	XS	SCH80	SCH100	SCH120	SCH140	SCH160
1/2"	21.3	2.11		2.41	2.77	2.77		3.73	3.73				4.78
3/4"	26.7	2.11		2.41	2.87	2.87		3.91	3.91				5.56
1"	33.4	2.77		2.9	3.38	3.38		4.55	4.55				6.35
1.1/4"	42.2	2.77		2.97	3.56	3.56		4.85	4.85				6.35
1.1/2"	48.3	2.77		3.18	3.68	3.68		5.08	5.08				7.14
2"	60.3	2.77		3.18	3.91	3.91		5.54	5.54				8.74
2.1/2"	73	3.05		4.78	5.16	5.16		7.01	7.01				9.53
3"	88.9	3.05		4.78	5.49	5.49		7.62	7.62				11.13
3.1/2"	101.6	3.05		4.78	5.74	5.74		8.08	8.08
4"	114.3	3.05		4.78	6.02	6.02		8.56	8.56		11.13		13.49
5"	141.3	3.4			6.55	6.55		9.53	9.53		12.7		15.88
6"	168.3	3.4			7.11	7.11		10.97	10.97		14.27		18.26
8"	219.1	3.76	6.35	7.04	8.18	8.18	10.31	12.7	12.7	15.09	18.26	20.62	23.01
10"	273	4.19	6.35	7.8	9.27	9.27	12.7	12.7	15.09	18.26	21.44	25.4	28.58
12"	323.8	4.57	6.35	8.38	9.53	10.31	14.27	12.7	17.48	21.44	25.4	28.58	33.32
14"	355.6	6.35	7.92	9.53	9.53	11.13	15.09	12.7	19.05	23.83	27.79	31.75	35.71
16"	406.4	6.35	7.92	9.53	9.53	12.7	16.66	12.7	21.44	26.19	30.96	36.53	40.19
18"	457.2	6.35	7.92	11.13	9.53	14.27	19.05	12.7	23.83	39.36	34.93	39.67	45.24
20"	508	6.35	9.53	12.7	9.53	15.09	20.62	12.7	26.19	32.54	38.1	44.45	50.01
22"	558.8	6.35	9.53	12.7	9.53		22.23	12.7	28.58	34.93	41.28	47.63	53.98
24"	609.6	6.35	9.53	14.27	9.53	17.48	24.61	12.7	30.96	38.89	46.02	52.37	59.54
26"	660.4	7.92	12.7		9.53			12.7
28"	711.2	7.92	12.7	15.88	9.53			12.7

Application of seamless steel pipe

1. Construction are: pipeline under most more building in extraction of groundwater, the boiler hot water use, etc.

2. Mechanical processing, bearing sleeve, processing machinery spare parts, etc.

3. Electrical class: gas pipeline, water power fluid.

4. Wind farms anti-static tube, etc.

Carbon Seamless Steel Pipe Material 20#,65*12*6-12m Hot Rolled Low OD1/2'-48'

Place of Origin	China	Brand Name	BOYUE
Standard	ANSI, ISO, ASME, DIN, ASTM	Type	Seamless
ModelNumber	Carbon Steel Pipe	Thickness	SCH 5-SCH XXS
Packing	Depending on customer	Payment	30%TT+70% Balance

Supply Ability:40000Pieces / per Month

Packaging & Delivery

Packaging Details:Generally plywooden case or following customer's requirement.

Port:Shanghai/Tianjin

Minimum Order Quantity:	1pcs
Price:	Depending on quantity
Payment Terms:	T/T or Western Union or LC
Supply Ability:	40000 ton per month
Delivery Time:	10-100 days depending on quantity
Packaging Details:	Depending on customer

Why Choose Us

1. One-Stop Service,One Single Source.

2. No MOQ.

3. Best quality,competitive price

4. Fast Reply.

5. On-Time Delivery

6. Professional sales and technical team .

FAQ

Q1: Are you a factory or a trade company?

A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)

Q2: Do you make customized products or finished parts?

A2: All parts are custom made only, and in stock, we can produce based on your drawings.

Q3: Will my drawing be e after you get it?

A3: Yes, we will not release your design to third party unless with your permission.

Q4: What is the MOQ?

A4: Small order is acceptable, but the more, the cheaper.

Q5: How about the samples?

A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
