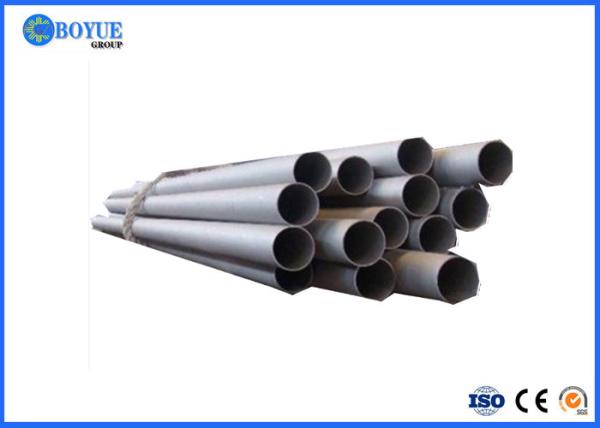

ASTM A335 P5 P9 Alloy Steel Seamless Welded Pipe SCH 5X - SCH 160
ISO SGS BV TUVBE / PE End
1. ASTM A335
P5, P9, P11, P22, P91 Seamless Pipes, Tubes Specifications, Stock
and Supply Range
Size Range : 1/2” NB to 36” NB
Alloy Steel Pipes Specifications : ASTM A/ASME SA 335 P1, P2, P5,
P9, P11, P12, P22, P23, P91, and P92
Thickness Range: SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All
Schedules, upto 12mm thk
Type : Seamless / ERW / Welded / Fabricated / CDW
Form: Round Pipes/Tubes, Square Pipes/Tubes, Rectangular
Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic
Tubes
Length: Single Random, Double Random & Required Length, Custom Size
– 12 Meter lengths
End: Plain End, Beveled End, Treaded
End Protection: Plastic Caps
End Connections for Line Pipes: Plain, Bevel, Screwed, Threaded
Outside Coating: Black Painting, Anti-Corrosion Oil, Galvanised
Finish, Finish as per customer Requirements
Inspection, Test Reports: Mill Test Certificates, EN 10204 3.1,
Chemical Reports, Mechanical Reports, PMI Test Reports, Visual
Inspection Reports, Third Party Inspection Reports, NABL Approved
Lab Reports, Destructive Test Report, Non Destructive Test Reports,
India Boiler Regulations (IBR) Test Certificate
Packing: Packed in Wooden Boxes, Plastic Bags, Steel Strips
Bundled, or as per Customers Requests
Specials: Sizes and Specifications other than above can be
manufactured on request
2. ASTM A335 / ASME SA 335 P5, P9, P11, P22, P91 Seamless Pipes
Chemical Composition :
| Grade | C | Mn | P | S | Si | Cr | Mo |
| P5 | 0.15max | 0.30-0.60 | 0.025 | 0.025 | 0.50 max | 4.00-6.00 | 0.45-0.65 |
| P9 | 0.15 max | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.00-10.00 | 0.90-1.10 |
| P11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 |
| P22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 max | 1.90-2.60 | 0.87-1.13 |
| P91 | 0.08-0.12 | 0.30-0.60 | 0.02 | 0.01 | 0.20-0.50 | 8.00-9.50 | 0.85-1.05 |
| V 0.18-0.25 | N 0.03-0.07 | Ni 0.40 max | Al 0.02 max | Cb 0.06-0.10 | Ti 0.01 max | Zr 0.01 max |
3. ASTM A335 / ASME SA 335 P5, P9, P11, P22, P91 Seamless Pipes
Mechanical Properties :
| Grade | Tensile strength(MPa) | Yield strength(MPa) | Elongation(%) | Impact energy(J) | Hardness |
| P11 | ≥ 415 | ≥ 205 | ≥ 22 | ≥ 35 | ≤ 163HB |
| P12 | ≥ 415 | ≥ 220 | ≥ 22 | ≥ 35 | ≤ 163HB |
| P22 | ≥ 415 | ≥ 205 | ≥ 22 | ≥ 35 | ≤ 163HB |
| P5 | ≥ 415 | ≥ 205 | ≥ 22 | ≥ 35 | ≤ 187HB |
| P91 | 585~760 | ≥ 415 | ≥ 20 | ≥ 35 | ≤ 250HB |
| P92 | ≥ 620 | ≥ 440 | ≥ 20 | ≥ 35 | 250HB |
4. Tolerance for ASTM A335/ASME SA 335 P5, P9, P11, P22, P91
Seamless Pipes :
| NPS | OD Tolerance | NPS | WT Tolerance |
| 1/8″ ≤ NPS ≤ 1 1/2″ | +/- 0.4 | 1/8″ ≤ NPS ≤ 2 1/2″ , All T/D ratios. | +20%, -12.5% |
| 1 1/2 < NPS ≤ 4″ | +/- 0.79 | NPS ≥ 2 1/2″ , T/D ≤ 5% | +22.5%, -12.5% |
| 4″ < NPS ≤ 8″ | +1.59, -0.79 | NPS ≥ 2 1/2″ , T/D > 5% | +15%, -12.5% |
| 8″ < NPS ≤ 12″ | +2.38, -0.79 | (T= Specified Wall Thickness; D = Specified Outside Diameter) |
5. ASTM A 335 Standard Specification for Seamless Ferritic
Alloy-Steel Pipe for High Temperature Service :
| Trade Name | Grade | UNS # | Pipe | Forged / Bored Pipe * |
| 1 1/4 Chrome | P11 | K11597 | A335 / SA335 | A369 / SA369 |
| 2 1/4 Chrome | P22 | K21590 | A335 / SA335 | A369 / SA369 |
| 5 Chrome | P5 | K41545 | A335 / SA335 | A369 / SA369 |
| 9 Chrome | P9 | S50400 | A335 / SA335 | A369 / SA369 |
| P91 | P91 | K91560 | A335 / SA335 | A369 / SA369 |
| P92 | P92 | K92460 | A335 / SA335 | A369 / SA369 |
Product Attribute
| Place of Origin | China | Brand Name | BOYUE |
| Standard | ANSI, ISO, ASME, DIN, ASTM | Type | Seamless |
| ModelNumber | IAlloy Steel Pipe | Thickness | SCH 5-SCH XXS |
| Packing | Depending on customer | Payment | 30%TT+70% Balance |
Supply Ability:40000Pieces / per Month
Packaging & Delivery
Packaging Details:Generally plywooden case or following customer's
requirement.
Port:Shanghai/Tianjin
Commerce Clause
| Minimum Order Quantity: | 1pcs |
| Price: | Depending on quantity |
| Payment Terms: | T/T or Western Union or LC |
| Supply Ability: | 40000 ton per month |
| Delivery Time: | 10-100 days depending on quantity |
| Packaging Details: | Depending on customer |
Why Choose Us
1.One-Stop Service,One Single Source.
2.No MOQ.
3.Best quality,competitive price
4.Fast Reply.
5.On-Time Delivery
6.Professional sales and technical team .
FAQ
Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing
of Large-size products.(View Mor)
Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce
based on your drawings.
Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with
your permission.
Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.
Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to
ensure quality standard, but it’s charged according to your
drawing.
