Forged Size 2- 24' NO8825 Nipo Alloy Steel Flanges , Incoloy 825
Copper Nickel Pipe Fittings
Specifications
1. Nipo Flange
2. Size: 1/2’’—60’’
3. ISO9001,ISO9000
4. Our main clients are from Turkey, Italy, France, Spain, South
Africa, Moroco, Dubai, Iran, Syria, Singapore,
Vietnam, Austria, USA, Canada, Mexico, Korea, Thailand, India,
Bulgaria, Russia and so on
5. Usage: Petroleum industry, Refinery Company, fertilizer
industry, power station, shipbuilding, onshore platform
Product Description
| Product Name | Nipo Flange |
| Standard | ASME/ANSI B16.5/16.36/16.47A/16.47B/B16.48, MSS S44, ISO70051,
JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Type | Special Flange: According to the drawing Picture |
| Materials | Copper Nickel Alloy: ASTM B466 UNS C70600, ASTM B466 UNS C71500, CUNI90/10, CUNI70/30 Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800,
N08810, N08825, N10276,N10665,N10675
Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317L, UNS S32750, UNS S32760
Stainless steel: ASTM/ASME S/A182 F304, F304L, F304H, F316, F316L, F321, F321H,
F347H
Duplex Steel: ASTM A182 F51, F53, F55, UNS S31803, UNS S31254
Alloy Steel: ASTM/ASME S/ A182 F11, F12, F22, F5, F9, F91 Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M,
F42, F52, F56, F60, F65, F70.... ASTM A516 GRADE 70 |
| Dimension | (150#,300#,600#): DN15-DN1500
900# : DN15-DN1000
1500#: DN15-DN600
2500#:D N15-DN300 |
| Test | Chemical Component Analysis, Mechanical Properties, Metallurgical
Analysis, Impact Testing, Hardness testing , Ferrite Testing, Inter
granular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC
& SSC test, etc. or as your requirement |
| Certificates | API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc. |
| Advantages | 1. Abundant stock and prompt delivery 2. Reasonable for whole packages and processes.
3. 15 years' QC team service & sales management API& ASTM trained
engineers. 4. More than 150 customers spread worldwide. (Petrofac, G.S
Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil,
Petrobras, PDVSA, Petrol Ecuador, SHELL, etc.) |

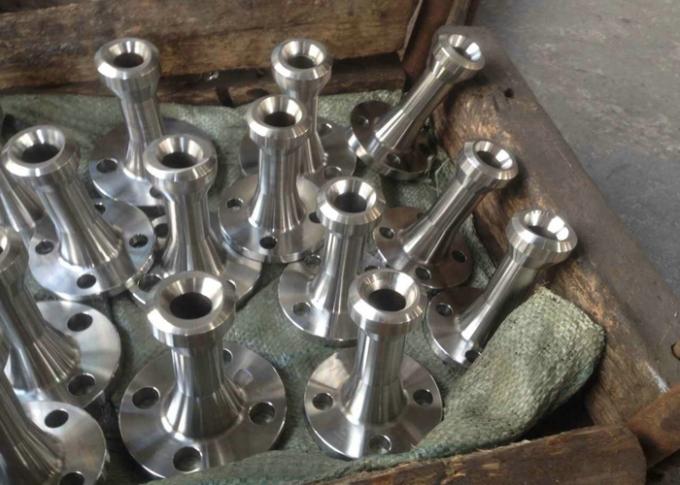

ASME/ANSI B16.5 stainless steel RF nipo-flange
Nipoflange is used in the pipe industry like a weldolet or a nipolet for a
90° branch connection.
A Nipoflange is a combination of weldolet, nipolet and flange.
Two different pipe branch connectionsOn the run pipe side a
nipoflange is designed like a weldolet.
That means the branch connection on the run pipe side is a welding
connection. On the other side there
it has a flange connection. The flange connection can be designed
according to customers requirements (acc. To DIN or ANSI).
GENERAL CHARACTERISTICS OF INCOLOY™ 825 ALLOY
Incoloy 825 alloy is a nickel-iron-chromium alloy with added
molybdenum, copper and titanium.
This alloy composition leads to very good resistance to many
corrosive environments, most notably
stress-corrosion cracking, reducing and oxidizing environments, and
to pitting and crevice corrosion.
| Alloy | Ni | C | Mn | Fe | S | Si | Cu | Cr | Al | Ti | Nb | Mo |
| Nickel 200 | 99.5 | 0.08 | 0.2 | 0.2 | 0.005 | 0.2 | 0.1 | -- | -- | -- | -- | -- |
| Nickel 200 | 99.5 | 0.01 | 0.2 | 0.2 | 0.005 | 0.2 | 0.1 | -- | -- | -- | -- | -- |
| Monel 400 | 66.5 | 0.2 | 1 | 1.2 | 0.01 | 0.2 | 31.5 | -- | -- | -- | -- | -- |
| Monel 401 | 42.5 | 0.05 | 1.6 | 0.4 | 0.008 | 0.1 | | -- | -- | -- | -- | -- |
| Monel K500 | 66.5 | 0.1 | 0.8 | 1 | 0.005 | 0.2 | 29.5 | -- | 2.7 | 0.5 | -- | -- |
| Inconel 600 | 76 | 0.08 | 0.5 | 8 | 0.006 | 0.2 | 0.2 | 15.5 | -- | -- | -- | -- |
| Inconel 601 | 60.5 | 0.05 | 0.5 | 14.1 | 0.007 | 0.2 | 0.5 | 23 | 1.4 | -- | -- | -- |
| Inconel 718 | 52.5 | 0.04 | 0.2 | 18.5 | 0.008 | 0.2 | 0.2 | 19 | 0.5 | 0.9 | 5.1 | 3 |
| Inconel X-715 | 73 | 0.04 | 0.5 | 7 | 0.005 | 0.2 | 0.2 | 15.5 | 0.7 | 2.5 | 1 | -- |
| Incoloy 800 | 32.5 | 0.05 | 0.8 | 46 | 0.008 | 0.5 | 0.4 | 21 | 0.4 | 0.4 | -- | -- |
| Incoloy 803 | 32.0-
37.0 | 0.06-
0.10 | ≤1.5 | | ≤0.015 | ≤1.0 | ≤0.75 | 25.0-
29.0 | 0.15-
0.60 | 0.15-
0.6 | -- | -- |
| Incoloy 825 | 42 | 0.03 | 0.5 | 30.4 | 0.02 | 0.2 | 2.2 | 21.5 | 0.1 | 0.9 | -- | 3 |
Other Products
Nickel Alloys WNRF Flanges : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy
C22,C276
Copper Alloys WNRF Flanges: Copper, Brass & Gunmetal
Incoloy Alloy Steel Flange : ASTM AB564 ,NO8800/ Alloy800, NO8810/ Alloy 800H, NO8811/Alloy 800HT
Hastelloy Steel Flange: ASTM AB564 , C276/ NO10276 , Monel Alloy 400 /NO4400, K500/NO5500,
APPLICATIONS
Applications include chemical processing, pollution control, oil
and gas
recovery, acid production, pickling operations, nuclear fuel
reprocessing, and handling of radioactive wastes.
Packaging & Shipping
| Packaging: | In wooded cases , pallets or according to clients' requirements |
| Shipping: | Tianjin port, Shanghai port and the other main ports in China |
Why Choose Us
1. One-Stop Service,One Single Source.
2. No MOQ.
3. Best quality,competitive price
4. Fast Reply.
5. On-Time Delivery
6. Professional sales and technical team .
FAQ
Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing
of Large-size products.(View Mor)
Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce
based on your drawings.
Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with
your permission.
Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.
Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to
ensure quality standard, but it’s charged according to your
drawing.
