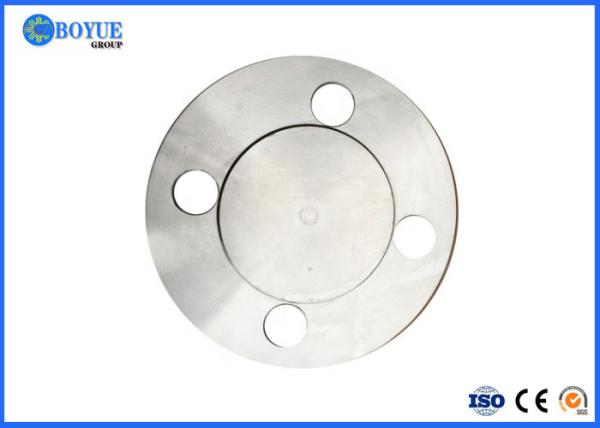

ASTM B564 UNS N06022 Hastelloy Blind Pipe Flanges DIN2527 PN6-PN100 Size 2'-24'

Ask Lasest Price
Brand Name :	BY
Model Number :	BYBL00014
Certification :	SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	10000 PC Per Month
Delivery Time :	10 Work days

Add to Cart

Product Details
Company Profile

ASTM B564 UNS N06022 Hastelloy Blind Pipe Flanges DIN2527 PN6-PN100 Size 2'-24'

ASTM B564 UNS N06022 Hastelloy Blind Pipe Flanges DIN2527 PN6-PN100 Size 2'-24'

1. Specification of DIN2527 Blind Flange

Material Grade:Carbon Steel: A105N

Stainless Steel:304,304L,316,316L,UNS31803Etc.

Inconel alloy steel: 600, 625, 800, 825

Pipe		Flange						Neck				Raised Face		Bolts					Arropx. Weight (kg)
DN	d₁ DIN (ISO)*	D	b			k	h₁	d₃ DIN (ISO)	s	r	h₂	d₄	f	#	Dia. of Bolt		d₂	Weld- ing Nack	Slip- on	Blind
DN	d₁ DIN (ISO)*	D	Welding Nack	Slip-on	Blind	k	h₁	d₃ DIN (ISO)	s	r	h₂	d₄	f	#	Dia. of Bolt		d₂	Weld- ing Nack	Slip- on	Blind
10	14 (17.2)	90	16	-	16	60	35	25 (28)	1.8	4	6	40	2	4	M12	1/2"	14	0.66	0.72	0.62
15	20 (21.3)	95	16	16	16	65	38	30 (32)	2	4	6	45	2	4	M12	1/2"	14	0.76	0.81	0.74
20	25 (26.9)	105	18	18	18	75	40	38 (40)	2.3	4	6	58	2	4	M12	1/2"	14	1.06	1.24	1.05
25	30 (33.7)	115	18	18	18	85	40	42 (45)	2.6	4	6	68	2	4	M12	1/2"	14	1.3	1.38	1.31
32	38 (42.4)	140	18	18	18	100	42	52 (56)	2.6	6	6	78	2	4	M16	5/8"	18	1.88	2.03	1.82
40	44.5 (48.3)	150	18	18	18	110	45	60 (64)	2.6	6	7	88	3	4	M16	5/8"	18	2.33	2.35	2.11
50	57 (60.3)	165	20	20	20	125	48	72 (75)	2.9	6	8	102	3	4	M16	5/8"	18	2.82	3.20	2.91
65	76.1	185	22	22	22	145	52	90	2.9	6	10	122	3	8	M16	5/8"	18	3.74	4.29	4.13
80	88.9	200	24	24	24	160	58	105	3.2	8	12	138	3	8	M16	5/8"	18	4.75	5.88	5.21
100	108 (114)	235	24	24	24	190	65	128 (134)	3.6	8	12	162	3	8	M20	3/4"	23	6.52	7.54	7.08
125	133 (139)	270	26	26	26	220	68	155 (162)	4	8	12	188	3	8	M24	7/8"	27	9.07	10.8	10.4
150	159 (168)	300	28	28	28	250	75	182 (192)	4.5	10	12	218	3	8	M24	7/8"	27	11.8	14.5	13.9
200	216 (219)	375	34	34	34	320	88	244	6.3	10	16	285	3	12	M27	1"	30	21.5	27.2	26.2
250	267 (273)	450	38	38	38	385	105	298 (306)	7.1	12	18	345	3	12	M30	1-1/8"	33	34.9	43.8	43.1
300	318 (323)	515	42	42	42	450	115	362	8	12	18	410	4	16	M30	1-1/8"	33	49.7	63.3	62.2
350	368 (355)	580	46	46	46	510	125	408	8.8	12	20	460	4	16	M33	1-1/4"	36	68.1	89.5	87.2
400	419 (406)	660	50	50	50	585	135	462	11	12	20	535	4	16	M36	1-3/8"	39	99.7	127	124
500	521 (508)	755	52	52	52	670	140	562	14.2	12	20	615	4	20	M39	1-3/8"	42	117	172	168

2. Material Overview

HASTELLOY Alloy C-22 is a nickel-chromium-molybdenum alloy with enhanced resistance to pitting, crevice corrosion and stress corrosion cracking. It resists the formation of grain boundary precipitates in the weld-heat affected zone making it suitable for use in the as-welded condition. C-22 has outstanding resistance to both reducing and oxidizing media and because of its resistibility can be used where "upset" conditions are likely to occur. It is proven to possess excellent weldability and high corrosion resistance as consumable filler wires and electrodes. The alloy has proven results as a filler wire in many applications. As filler wire use when other corrosion resistant wires have failed.

C-22 can easily be cold-worked because of its ductility and cold-forming is the preferred method of forming. More energy is required because the alloy is generally stiffer than austenitic stainless steels. 0.28" thick sheet in the heat-treated at 2050°F, rapid quenched condition, has an average olsen cup depth of 0.49".

ASTM B564 UNS N06022 Hastelloy Blind Pipe Flanges DIN2527 PN6-PN100 Size 2'-24'

Product Attribute

Place of Origin	China	Brand Name	BOYUE
Standard	ASME B16.5	Type	Blind Flange
ModelNumber	Hastelloy	Thickness	#150,#300,#600.#900
Packing	Ply-Wood Cases	Payment	30%TT+70% Balance

Supply Ability:40000Pieces / per Month

Packaging & Delivery

Packaging Details:Generally plywooden case or following customer's requirement.

Port:Shanghai/Tianjin

Product Description:

Name	Forged Blind Flange
Standard	ANSI B16.5, ANSI B16.47
Material Grade	Carbon Steel: A105N Stainless Steel:304,304L,316,316L,UNS31803Etc. Inconel alloy steel: 600, 625, 800, 825
Outer Diameter	1/2"-80", DN6-DN2400
Pressure	CLASS 150LB -CLASS 3000LB
Technology	Forged flange
Surface	As customer request
Application	Pipeline and valves connection
MOQ	1 piece
Productivity	40000 Pieces/Month
Payment term	Any payment term is acceptable.
Packing	Wooden case or pallet packing.
Delivery	5 days

ASTM B564 UNS N06022 Hastelloy Blind Pipe Flanges DIN2527 PN6-PN100 Size 2'-24'

Why Choose Us

1.One-Stop Service,One Single Source.

2.No MOQ.

3.Best quality,competitive price

4.Fast Reply.

5.On-Time Delivery

6.Professional sales and technical team .

FAQ

Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)

Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.

Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.

Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.

Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.

Product Tags:


*From:	Your email address is incorrect!
*To:	BoYue Industrial (Shanghai)Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Explore more Blind Pipe Flanges products from this supplier

Find Similar Products By Category:

Hardware

Hot Searches:

Standard	Type		Class	Size
ASME B16.5	WN/LWN/SO/Blind/Lap Joint		150#-2500#	1/2"-24" (Except Blind Flange 2500lb 1/2"-12")
	SW flange		150#-1500#	1/2"-3" (Except 1500# 1/2"-2 1/2")
	Threaded		150#-900#	1/2"-24"
			1500# 2500#	1/2"-2 1/2"
ASME B16.47 Series A	WN/blind flange		150# -900#	22"-48" (Except 900# Size:26"-48")
ASME B16.47 Series B	WN/blind flange		75#-300#	26"-48"
			400# 600# 900#	26"-36"
DIN2527	Blind flange		PN6-PN100	DN10-DN1000
DIN2543	SO flange		PN16	DN10-DN1000
DIN2544	SO flange		PN25	DN10-DN1000
DIN2545	SO flange		PN40	DN10-DN500
DIN2565	Threaded flange with Neck		PN6	DN6-DN200
DIN2566	Threaded flange with Neck		PN16	DN6-DN150
DIN2567	Threaded flange with Neck		PN25 PN40	DN6-DN150
DIN2568	Threaded flange with Neck		PN64	DN10-DN150
DIN2569	Threaded flange with Neck		PN100	DN10-DN150
EN1092-1:2002	Plate flange for welding/ loose plate flange with weld-on plate collar or for lapped pipe end/Blind Flange/WN flange		PN2.5-PN100	DN10-DN4000
JIS B2220	Welding flange, lap joint flange, threaded flange		PN6-PN100	DN10-DN1500
BS4504 BS10 TableD/E	Plate Flange for welding/ WN flange/blank Flange		PN6-PN100	DN10-DN1500
Other Products	Anchor/swivel/girth/l ap joint/reducing/orifice
	Spectacle blind/paddle blind/ spacer ring/orifice plate/bleed ring
	Special Products: rings/ forgings/disc/shaft sleeves
Sealing Surface	RF FF RTJ TF GF LF LM
Flange Face Finish	Stock finish/spiral serrated/ concentric serrated/smooth finish (Ra 3.2 and 6.3 micrometers)
	125-250 AARH(it is called smooth finish)
	250-500 AARH(it is called stock finish)
Coating	Vanish, yellow paint, anti-rust oil, galvanizing etc
Material Grade	Nickel Alloy Steel		ASTM/ASME B/SB564 UNS N02200(NICKEL 200), UNS N04400(MONEL 400),
			UNS N08825( INCOLOY 825),UNS N06600(INCONEL 600),
			UNS N06601(INCONEL 601), UNS N06625(INCONEL 625), UNS N10675(HASTELLOY C276),
			ASTM/ASME B/SB160 UNS N02201(NICKEL 201), ASTM B/SB472 UNS N08020(Alloy 20)
	Copper Alloy		ASTM/ASME B/SB151 UNS C70600(CuNi 90/10), C71500(CuNi 70/30)
	Stainless Steel		ASTM/ASME A/SA182 F304,304L,304H,309H,310H, 316,316H,316L,316LN,
			317,317L,321,321H,347,347H
	Duplex and Super Duplex Steel		ASTM/ASME A/SA182 F44,F45,F51,F53,F55,F60,F61
	Carbon steel		ASTM /ASME A/SA105(N)
	Low Temp Carbon Steel		ASTM/ASME A/SA350 LF2
	High Yield Carbon Steel		ASTM/ASME A/SA694 F52,F56 F60, F65, F70
	Alloy Steel		ASTM/ASME A/SA182 GR F5, F9, F11,F12,F22,F91
	Titanium		ASTM/ASME B/SB381 Grade 2, Grade 5, Grade 7
Carbon Steel		ASTM A105
Alloy Steel:		ASTM A182 F1/F5/F9/F11/F22/F91/F92 Etc
Duplex Steel:		Duplex F51 2205 UNS S31803, Super Duplex 2507 (UNS S32750), F55 (UNS S32760)
Stainless Steel:		ASTM A182 F304 F304L F304H F309 F310 F310S F316 F316L F316 F316Ti F317 F317L F321 F347 F347H
Duplex Stainless Steel:		ASTM A182 F51/F53/F55/F60
Nicke alloys:		Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800
Cu-Ni:		90/10,70/30
